CS2150M Bipotentiostat (2-channel, No EIS) Highlights

CS2150M Bipotentiostat / Bigalvanostat is the real 2-channel potentiostat. The two channels are totally independent. It can not only support RE, CE, WE 1, WE 2 system, but also supports two independent systems:

System 1#: WE 1, RE 1, CE 1
System 2#: WE 2, RE 2, CE 2

When the bipotentiostat has 2 independent channels, you can connect to 2 independent cell systems, and conduct the experiment at the same time in each channel.
This will save you time and make the experiment more efficient, especially when you have many samples to test. CS2150M equals to two sets of single-channel potentiostat (Model CS150M) in one chassis. It brings convenience to the researchers and saves their time. It is a popular cost-effective product among users. With the same level and function product, our price is just half or one-third of some other brands.

– Real independent 2-channel potentiostat. Built-in EIS module is equipped in both channels
– CS2150M EIS Bipotentiostat equals that you have 2 sets of independent potentiostat
– Can connect to RRDE rotator of any brand for RRDE test
– Can do the Hydrogen Diffusion Test
– Connects to 2 independent cells, and does the experiment in each channel simultaneously
– Full floating for each channel, which ensures the total independency of each channel

Application
(1) Electrosynthesis, electrodeposition (electroplating), anodic oxidation, electrolysis
(2) Oxygen reduction reaction (ORR), oxygen evolution reaction (OER), Hydrogen evolution reaction (HER), carbon dioxide reduction.
(3) Energy and materials (Li-ion battery, solar cell, fuel cell, supercapacitor), advanced function materials, and sensor.
(4) Corrosion behavior of metals, and anti-corrosion evaluation
(5) Fast evaluation of inhibitor, water quality stabilizer, coating, and cathodic protection efficiency.

Standard supply
Instrument CS2150M x1
CS studio software x1
Power cable x1
Ethernet cable x1
Cell cable x 4
Dummy cell (1kΩ||100µF) x2

Typical applications

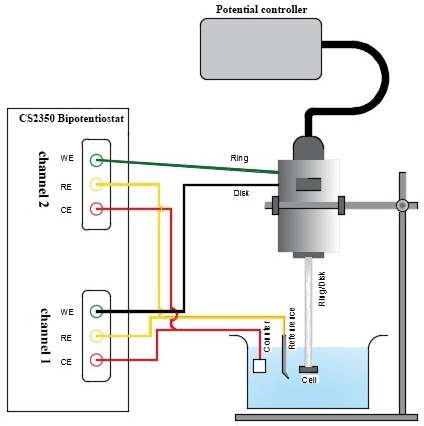

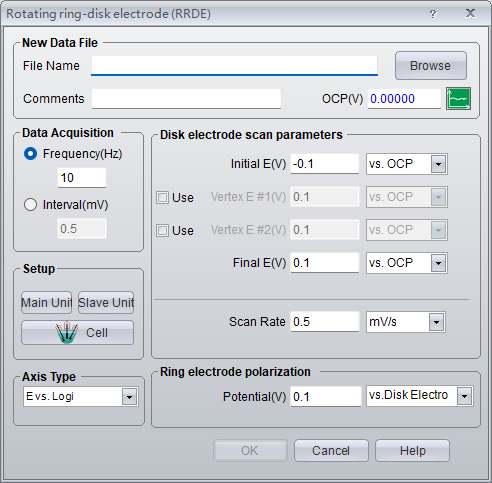

Rotating ring-disk electrode (RRDE)
Oxidation/reduction reaction (ORR) study: while measuring the polarization curve of disk electrode in the main channel, apply a constant polarization potential on the ring electrode, and thus detect the intermediate products on the disk electrode. RRDE test becomes the typical method for ORR study. CS2150M can be connected to any RRDE equipment.

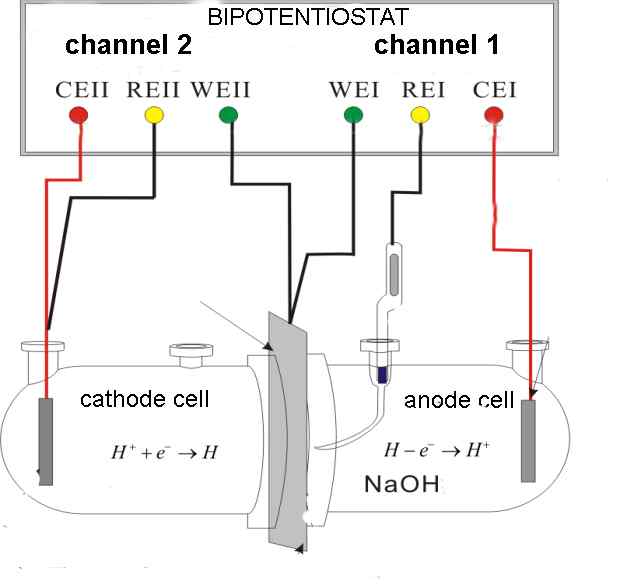

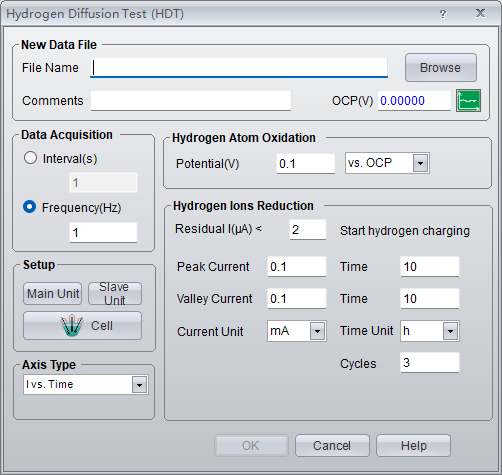

Hydrogen diffusion test (HDT)
CS2150M bipotentiostat is combined with H-cells. By measuring current of cathode hydrogen charging and hydrogen atoms anode oxidation, it can further calculate the diffusion coefficient of hydrogen atoms in metal and hydrogen flux.

Technical advantages

1. Polarization curve
Tafel plot can be obtained. The user can set the anodic reversal current (passivation film breakdown current) of the cyclic polarization curve to obtain material’s pitting potential and protection potential and uate the its susceptibility to intergranular corrosion. The software uses non-linear fitting to analyze polarization curve, and can make fast evaluation of material’s anti-corrosion ability and inhibitors.

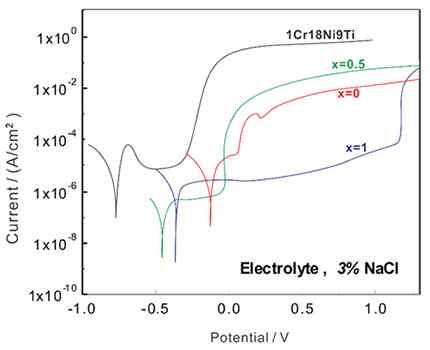

Polarization curve of Ti-based amorphous alloy & stainless steel in 3%NaCl solution

2. Voltammetry
Linear Sweep Voltammetry(LSV), Cyclic Voltammetry(CV), SCV, SWV, DPV, NPV,ACV, Stripping voltammetry etc. It integrates calculation of peak area, peak current and standard curve analysis.

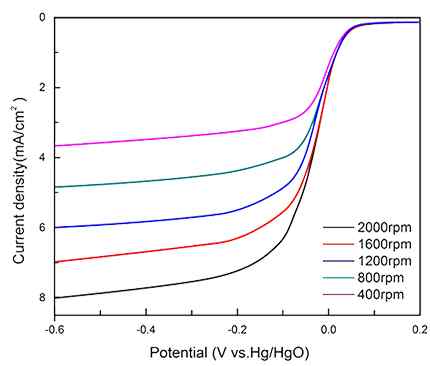

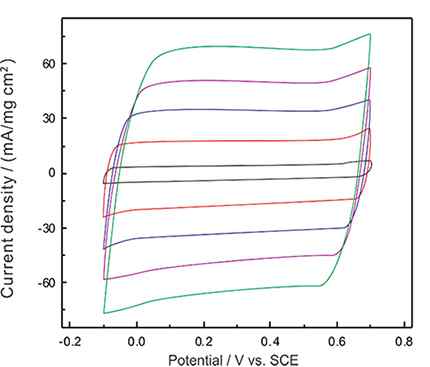

LSV: mesoporous carbon material in 0.1M KOH               CV of PPy supercapacitor in 0.5 mol/L H₂SO₄

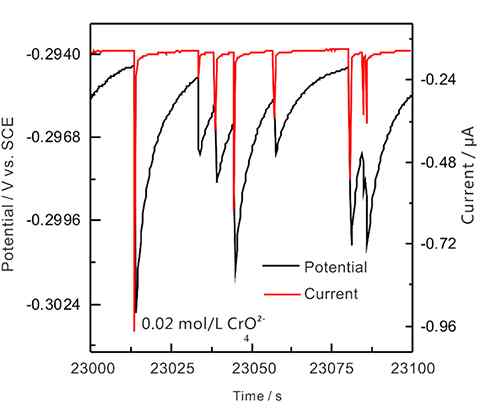

3. Electrochemical Noise
With high-resistance follower and zero-resistance ammeter, it measures the natural potential/current fluctuations in corrosion system. It can be used to study pitting corrosion, galvanic corrosion, crevice corrosion, and stress corrosion cracking etc. Based on calculation of noise resistance and pitting index, it can complete localized corrosion monitoring.

4. Full floating measurement
Full-floating mode be used for autoclave electrochemical measurements, on-line corrosion monitoring of metallic components under the ground (rebar in concrete, etc.)

5. Software development kit (SDK)
We are able to provide API functions and development examples, which facilitates some users’ requirements for secondary development and self-defined measurements. We can provide .dll file.

Software Features

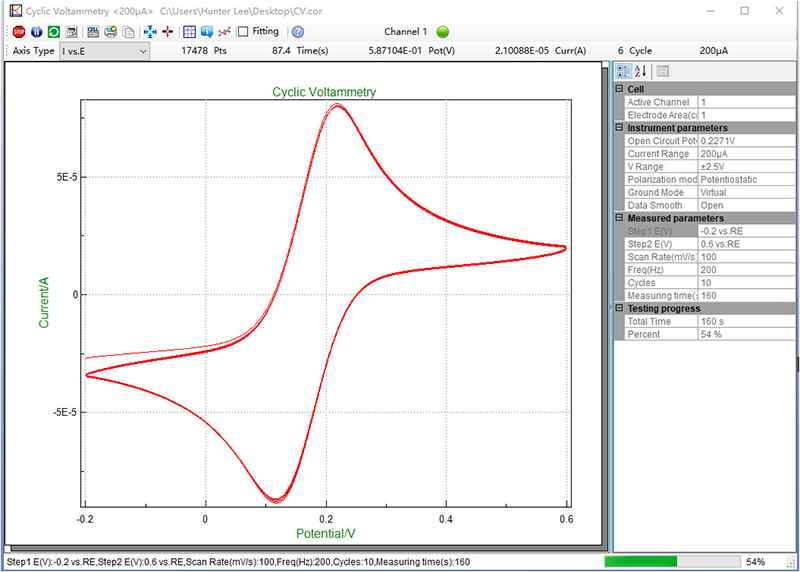

Cyclic voltammetry:
CS studio software provides users a versatile smoothing/differential/ integration kit, which can complete the calculation of peak height, peak area and peak potential of CV curves. In CV technique, during the data analysis, there is function of selecting exact cycle(s) to show. You can choose to see a cycle or some cycles as you want. You can also export data or vector graph of an exact cycle or several cycles.

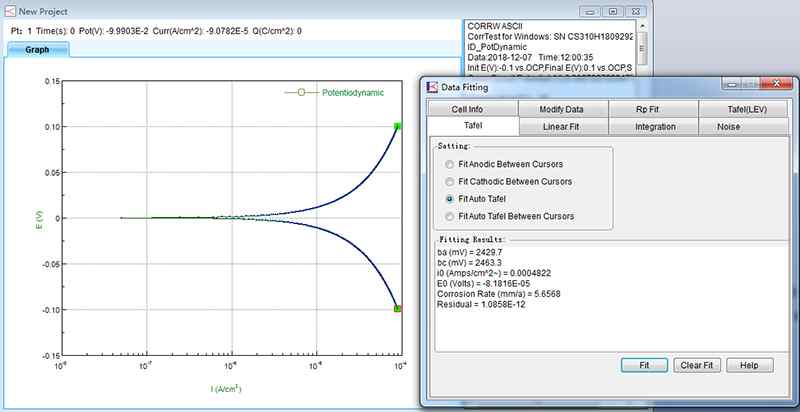

Tafel plot and corrosion rate:
CS studio also provides powerful non-linear fitting on Butler-Volmer equation of polarization curve. It can calculate Tafel slope, corrosion current density, limitation current, polarization resistance, corrosion rate. It can also calculate the power spectrum density, noise resistance and noise spectrum resistance based on the electrochemical noise measurements.

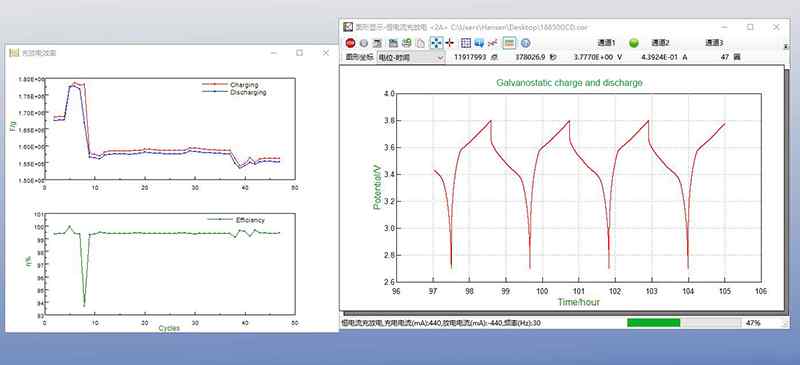

Battery Test and analysis:
charge & discharge efficiency, capacity, specific capacitance, charge & discharge energy.



Real time saving of data: The data can be automatically saved even in case of sudden power off.

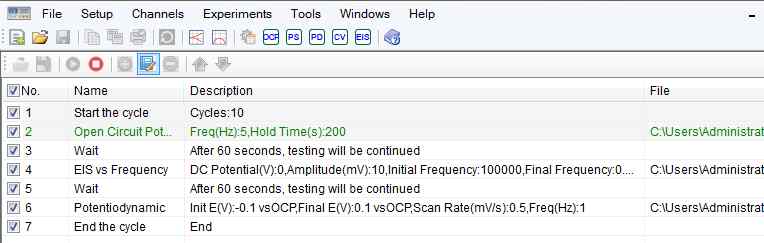

Combination test: it can facilitate the automation of experiments and save time. With the unique function of combination test, you can choose several techniques, and set the wait time, the start time, and the cycles. Choose the experiments you want to run. Then you can make auto measurement of the set experiments as you want without having to wait in the lab. This function is especially useful if you have multi experiments to run and save your time greatly.

Data open: You can open the data files by txt format in notepad. Data can also be opened in Origin
