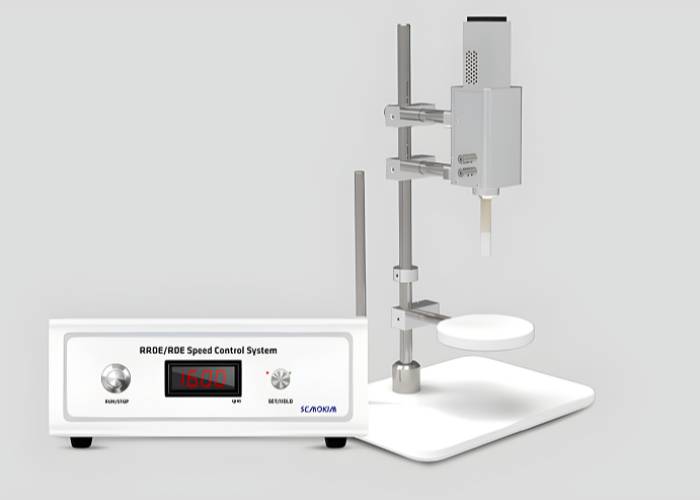

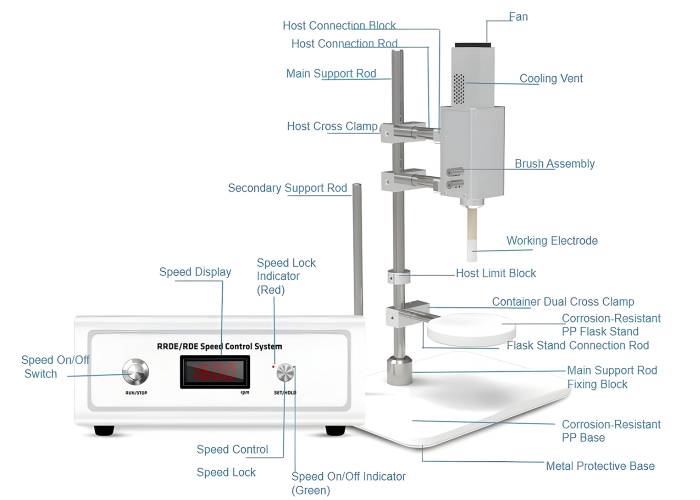

Multi-Function RRDE system
4-in-1 Electrochemical System for RDE, RRDE, Spin Coating & Electro-Spinning
4-in-1 Electrochemical System for RDE, RRDE, Spin Coating & Electro-Spinning
A multifunctional electrochemical platform combining rotating disk and ring-disk measurements with advanced spin coating and voltage/current-assisted electro-spinning, ideal for catalyst development and surface engineering.
Highlights

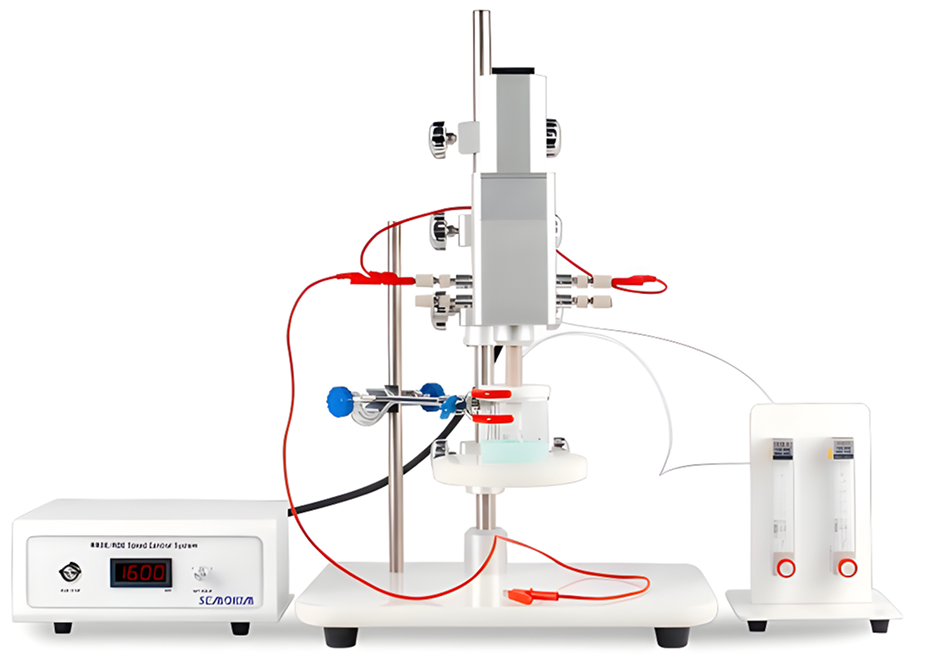

This multifunction RRDE system is a high-precision 4-in-1 electrochemical platform that supports RDE, RRDE, spin coating, and electro-assisted spin coating (electrospinning-like) applications. Designed for seamless integration with any electrochemical workstation, including those with bipotentiostat functionality, the system enables researchers to fabricate, modify, and test catalytic electrodes within a single compact setup.
With a constant-speed, low-vibration motor and support for both disk and ring-disk configurations, the multifunction RRDE is ideal for mechanistic studies and kinetic analysis in advanced electrocatalytic research areas such as HER, OER, ORR, HOR, and CO₂ reduction. The added ability to perform voltage-assisted spin coating allows precise control of film morphology and adhesion, offering new capabilities for in-situ catalyst layer engineering.
Electro-assisted spin coating Publications
- Effect of Voltage and concentration of polyetherimide on surface morphology and corrosion properties of AZ91D by electro-spin coating
- Electrospinning: A Powerful Tool to Improve the Corrosion Resistance of Metallic Surfaces Using Nanofibrous Coatings
- Electrostatic spray catalytic particle coating on carbon electrode for enhancing electrochemical reaction
- Parametric study of manufacturing ultrafine polybenzimidazole fibres by electrospinning
Technical Specifications
Precision engineering for accurate measurements
| Rotation Speed | 50–9800 rpm (closed-loop control, <0.1% deviation) |
|---|---|
| Speed Control | Manual or via potentiostat (remote control) |
| Spin Coating | Supported (with integrated spin functionality) |
| Motor Type | High-precision DC servo motor (Japan import) |
| Motor Power | 10W |
| Power Supply | 20W, AC 220V, 50 Hz |
| Electrode Shaft | Adjustable (vertical/horizontal/inverted) |
| Electrode Head Run-out | ≤ 0.05 mm |
| Contact Resistance | < 5 Ω |
| Insulation Resistance | > 20 MΩ |
| Remote Signal Output | 1 V = 2000 rpm |
| Main Unit Dimensions | 40 × 30 × 60 cm (L × W × H) |
| Controller Dimensions | 26 × 18 × 11 cm |
| Total Weight | 10 kg |
Methods/Techniques
Want to learn more about these techniques?
Check out our Introduction to Electrochemical Techniques blog for an in-depth overview of their principles and applications.
Resources & Downloads
Everything you need to get started
Multi-function RRDE Brochure
