High-performance EIS battery cyclers for accurate impedance and cycling tests. Ideal for battery labs in AU & NZ.

EIS Battery Cycler Series | Impedance & Charge Testing AU & NZ

Squidstsat Cycler Key Features &amp; Benefits:
<ul>
<li>24-bit Analog-to-Digital Converter (ADC) for 0.06 ppm voltage measurement resolution</li>
<li>Every channel is equipped with Electrochemical Impedance Spectroscopy (EIS) up to 10 kHz</li>
<li>Every channel can run 2, 3, or 4-electrode measurements, with temperature sensor built in</li>
<li>Customizable up to a 0-60V voltage scan range and +/-60A maximum current range per channel</li>
<li>Available in a handheld 4-channel configuration, or rack-mounted for higher channel counts</li>
<li>Any number of channels can be stacked together in parallel to go as high as 1000A</li>
<li>Operated by our modern Squidstat User Interface with drag-and-drop experiment builder options</li>
</ul>
Supported Measurement Techniques:
<ul>
<li>Battery Capacity</li>
<li>Charge / Discharge (Constant C / Constant V)</li>
<li>Charge / Discharge (Constant R / Constant P)</li>
<li>Chronoamperometry</li>
<li>Chronopotentiometry</li>
<li>Cyclic Voltammetry (CV)</li>
<li>Electrochemical Impedance Spectroscopy (both PEIS and GEIS)</li>
<li>Galvanostatic Intermittent Titration Technique (GITT)</li>
<li>Linear Sweep Voltammetry (LSV)</li>
<li>Mott&ndash;Schottky (single-frequency and multi-frequency)</li>
<li>Open Circuit Potential Monitoring</li>
<li>Potentiostatic Intermittent Titration Technique (PITT)</li>
<li>Square Wave Voltammetry</li>
<li>Staircase Voltammetry</li>
</ul>

Reliable SquidStat base model for EIS cycling and electrochemical measurements. Ideal for AU & NZ labs and researchers.

SquidStat EIS Cycler Base Model | Electrochemical Testing


Potentiostatic Intermittent Titration Technique (PITT)


Mott–Schottky (single-frequency and multi-frequency)


Galvanostatic Intermittent Titration Technique (GITT)


Electrochemical Impedance Spectroscopy (both PEIS and GEIS)


Charge / Discharge (Constant R / Constant P)


Charge / Discharge (Constant C / Constant V)

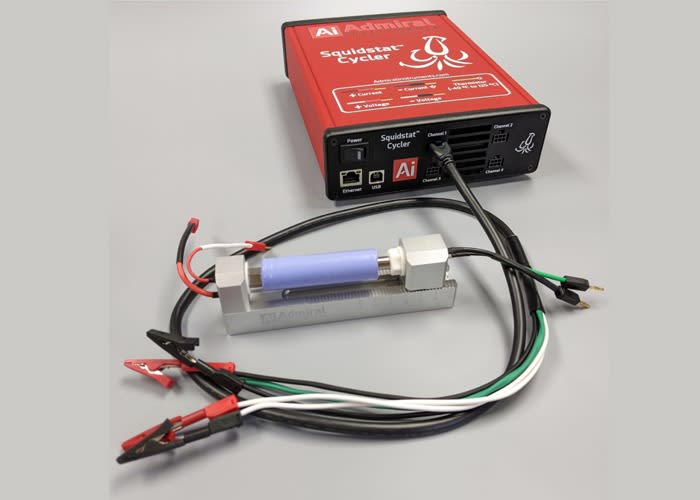

Squidstat EIS Cycler Base Model

Squidstat Cycler Customization Options:
<ul>
<li>Customizable up to a 0-60V voltage scan range and +/-60A maximum current range per channel</li>
<li>Up to 3 kW max input/output on individual channels</li>
<li>Channels can be combined up to 1000A at up to 60V with 120kW max combined power</li>
<li>Multichannel 19&Prime; rack-mount configurations to support 10s, 100s, or 1000s of channels</li>
<li>Configure channels to run in 4-quadrant bipolar mode, just like a standard potentiostat</li>
<li>Bidirectional power supply configurations available to conserve power and lower operating cost</li>
<li>Application Programming Interface (API) available for integration &amp; automation with other systems</li>
</ul>

Customise your SquidStat EIS cycler with modules and options for specific research needs across AU & NZ labs.

SquidStat EIS Cycler Customisation | Tailored Solutions

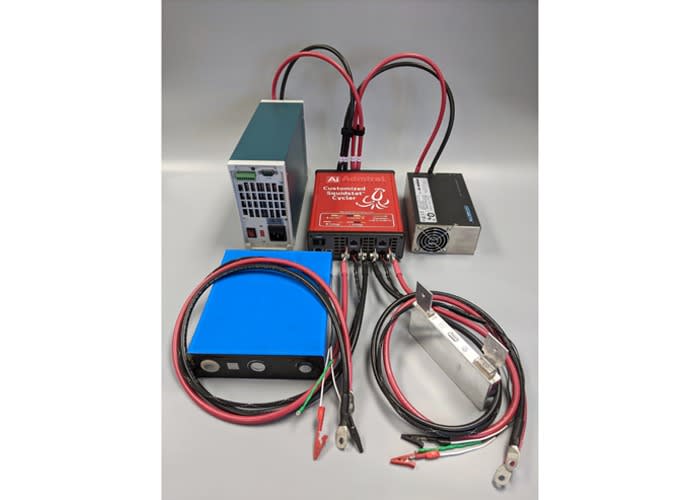

Squidstat EIS Cycler Customisation Options
