Peristaltic Pumps

LP-L100-1E Basic Single/Dual-channel Pumps offer a compact and efficient design featuring speeds ranging from 0.1 to 100 rpm and flow rates between 0.000166 to 32 mL/min. These pumps are ideal for laboratory tasks such as transfer, feeding, sampling, and precise filling. They are fully compatible with AIO/AIO-SPE cells, flow-cell add-ons, and various electrodes for enhanced functionality.

• Dimensions: 197 x 110 x 91 mm (L x W x H)
• Channels: 1
• Flow rate: 0.000166 – 32 mL/min
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Membrane keypad (start/stop, direction, and speed)
• Display: 3-digit LED display for current speed, 2 LED indicators for running direction
• Power-off memory: Returns to previous state upon powering on
• Prime key: Quick filling and emptying at maximum speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 100-240V, 50/60Hz
• Power consumption: 15W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 2.3 kg (without head)
• IP rating: IP31
• Certifications: CE

L100-1E Basic Dual-channel Peristaltic Pump provides a space-saving, compact footprint with a speed range of 0.1 to 100 rpm and flow rates from 0.000166 to 32 mL/min. Perfect for lab and research applications, this pump supports transfer, feeding, sampling, and filling processes. It integrates seamlessly with AIO/AIO-SPE cells, flow-cell add-ons, and printed as well as thin-film electrodes.

• Dimensions: 197 x 110 x 91 mm (L x W x H)
• Channels: 2
• Flow rate: 0.000166 – 32 mL/min
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Membrane keypad (start/stop, direction, and speed)
• Display: 3-digit LED display for current speed, 2 LED indicators for running direction
• Power-off memory: Returns to the previous state when powered on
• Prime key: Quick filling and emptying at maximum speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 100-240V, 50/60Hz
• Power consumption: 15W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 2.3 kg (without head)
• IP rating: IP31
• Certifications: CE

BT100-1F Dispensing Single-channel Peristaltic Pump features an LCD display that clearly shows parameters and operation status. It delivers flow rates from 0.0002 to 32 mL/min and dispensing volumes from 0.01 mL up to 999 L. This pump is compatible with AIO/AIO-SPE cells, flow-cell add-ons, and both printed and thin-film electrodes for versatile laboratory use.

• Dimensions: 285 x 207 x 180 mm (L x W x H)
• Operating mode: Flow rate and dispensing mode
• Channels: 1
• Flow rate: 0.000166 – 32 mL/min
• Communication interface: RS485
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Control panel, external signal control, and communication control
• Display: LCD
• Power-off memory: Return to previous state when power on
• External control signal: Start/stop, direction, and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz external control module optional)
• Prime key: Fast filling and emptying at full speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 90V-260V
• Power consumption: 40W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 3.8 Kg
• IP rating: IP31
• Certifications: CE

BT100-1F Dispensing Dual-channel Peristaltic Pump comes equipped with an LCD screen to display running parameters and status. It offers precise flow rates between 0.0002 and 32 mL/min, along with dispensing volumes from 0.01 mL to 999 L. This dual-channel design works flawlessly with AIO/AIO-SPE cells, flow-cell add-ons, and various electrodes.

• Dimensions: 285 x 207 x 180 mm (L x W x H)
• Operating mode: Flow rate and dispensing mode
• Channels: 2
• Flow rate: 0.000166 – 32 mL/min
• Communication interface: RS485
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Control panel, external signal control, and communication control
• Display: LCD
• Power-off memory: Return to previous state when power on
• External control signal: Start/stop, direction, and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz external control module optional)
• Prime key: Fast filling and emptying at full speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 90V-260V
• Power consumption: 40W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 3.8 Kg
• IP rating: IP31
• Certifications: CE

BT100-1F Dispensing Four-channels Peristaltic Pump includes an LCD display for monitoring parameters and operational status. It supports flow rates from 0.0002 to 32 mL/min and dispensing volumes ranging from 0.01 mL to 999 L. It is fully compatible with AIO/AIO-SPE cells, flow-cell add-ons, and printed and thin-film electrodes.

• Dimensions: 285 x 207 x 180 mm (L x W x H)
• Operating mode: Flow rate and dispensing mode
• Channels: 4
• Flow rate: 0.000166 – 32 mL/min
• Communication interface: RS485
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Control panel, external signal control, and communication control
• Display: LCD
• Power-off memory: Return to previous state when power on
• External control signal: Start/stop, direction, and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz external control module optional)
• Prime key: Fast filling and emptying at full speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 90V-260V
• Power consumption: 40W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 3.8 Kg
• IP rating: IP31
• Certifications: CE

BT100-1L Four-channels Peristaltic Pump boasts a graphic LCD to display parameters and operational states. With a high output torque, it can drive up to 24 channels, delivering flow rates from 0.002 to 32 mL/min. The pump automatically saves running parameters for easy operation and is compatible with AIO/AIO-SPE cells, flow-cell add-ons, and various electrodes.

• Dimensions: 202 × 160 × 239 mm (L x W x H)
• Channels: 4
• Flow rate: 0.002 – 32 mL/min
• Communication interface: RS485
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Control panel, external signal control, and communication control
• Display: 128 × 64 graphical LCD
• Power-off memory: Return to previous state when power on
• External control signal: Start/stop, direction, and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz external control module optional)
• Prime key: Fast filling and emptying at full speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 220 V ± 10% 50/60 Hz (standard) or AC 110 V ± 10% 50/60 Hz (optional)
• Power consumption: 50W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 5.3 Kg
• IP rating: IP31
• Certifications: CE

BT100-1L Eight-channels Peristaltic Pump showcases a modern design with graphic LCD that displays parameters and running status. Its powerful output torque can drive up to 24 channels, offering flow rates from 0.002 to 32 mL/min. The pump automatically saves running parameters, ensuring easy and reliable operation. Compatible with AIO/AIO-SPE cells, flow-cell add-ons, printed, and thin-film electrodes.

• Dimensions: 202 × 160 × 239 mm (L x W x H)
• Channels: 8
• Flow rate: 0.002 – 32 mL/min
• Communication interface: RS485
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Control panel, external signal control, and communication control
• Display: 128 × 64 graphical LCD
• Power-off memory: Return to previous state when power on
• External control signal: Start/stop, direction, and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz external control module optional)
• Prime key: Fast filling and emptying at full speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 220 V ± 10% 50/60 Hz (standard) or AC 110 V ± 10% 50/60 Hz (optional)
• Power consumption: 50W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 5.3 Kg
• IP rating: IP31
• Certifications: CE

BT100-1L Twelve-channels Peristaltic Pump features a graphic LCD to monitor parameters and operational state. It provides high torque capable of driving up to 24 channels with flow rates ranging from 0.002 to 32 mL/min. Running parameters are saved automatically for effortless control. Fully compatible with AIO/AIO-SPE cells, flow-cell add-ons, printed, and thin-film electrodes.

• Dimensions: 202 × 160 × 239 mm (L x W x H)
• Channels: 12
• Flow rate: 0.002 – 32 mL/min
• Communication interface: RS485
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Control panel, external signal control, and communication control
• Display: 128 × 64 graphical LCD
• Power-off memory: Return to previous state when power on
• External control signal: Start/stop, direction, and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz external control module optional)
• Prime key: Fast filling and emptying at full speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 220 V ± 10% 50/60 Hz (standard) or AC 110 V ± 10% 50/60 Hz (optional)
• Power consumption: 50W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 5.3 Kg
• IP rating: IP31
• Certifications: CE

BT100-1L Sixteen-channels Peristaltic Pump comes equipped with a graphic LCD for clear display of operational parameters. It offers high torque allowing control of up to 24 channels, with flow rates between 0.002 and 32 mL/min. The pump saves running settings automatically for convenient use. Compatible with AIO/AIO-SPE cells, flow-cell add-ons, and various electrodes.

• Dimensions: 202 × 160 × 239 mm (L x W x H)
• Channels: 16
• Flow rate: 0.002 – 32 mL/min
• Communication interface: RS485
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Control panel, external signal control, and communication control
• Display: 128 × 64 graphical LCD
• Power-off memory: Return to previous state when power on
• External control signal: Start/stop, direction, and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz external control module optional)
• Prime key: Fast filling and emptying at full speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 220 V ± 10% 50/60 Hz (standard) or AC 110 V ± 10% 50/60 Hz (optional)
• Power consumption: 50W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 5.3 Kg
• IP rating: IP31
• Certifications: CE

BT100-1L Twenty-four-channels Peristaltic Pump provides graphic LCD monitoring of parameters and running state. Its powerful torque drives up to 24 channels, delivering flow rates from 0.002 to 32 mL/min. Automatic saving of running parameters ensures user-friendly operation. Works flawlessly with AIO/AIO-SPE cells, flow-cell add-ons, printed, and thin-film electrodes.

• Dimensions: 202 × 160 × 239 mm (L x W x H)
• Channels: 24
• Flow rate: 0.002 – 32 mL/min
• Communication interface: RS485
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Control panel, external signal control, and communication control
• Display: 128 × 64 graphical LCD
• Power-off memory: Return to previous state when power on
• External control signal: Start/stop, direction, and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz external control module optional)
• Prime key: Fast filling and emptying at full speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 220 V ± 10% 50/60 Hz (standard) or AC 110 V ± 10% 50/60 Hz (optional)
• Power consumption: 50W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 5.3 Kg
• IP rating: IP31
• Certifications: CE

BT100-3J Precise Single-channel Peristaltic Pump is a cost-effective option delivering excellent flow system performance. It supports flow rates ranging from 0.0002 to 32 mL/min, suitable for diverse laboratory tasks. Compatible with AIO/AIO-SPE cells, flow-cell add-ons, printed, and thin-film electrodes.

• Dimensions: 232 x 142 x 149 mm (L x W x H)
• Channels: 1
• Flow rate: 0.000166 – 32 mL/min
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Membrane keypad (start/stop, direction, and speed)
• Display: 3-digit LED display for current speed. 3 LED indicators for operating state
• Power-off memory: Return to previous state when power on
• Prime key: Fast filling and emptying at maximum speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 90V-260V
• Power consumption: 30W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 2.3 kg (without head)
• IP rating: IP31
• Certifications: CE

BT100-3J Precise Dual-channel Peristaltic Pump combines affordability with robust performance for lab flow applications. Flow rates cover 0.0002 to 32 mL/min, adaptable for various lab needs. Fully compatible with AIO/AIO-SPE cells, flow-cell add-ons, printed, and thin-film electrodes.

• Dimensions: 232 x 142 x 149 mm (L x W x H)
• Channels: 2
• Flow rate: 0.000166 – 32 mL/min
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Membrane keypad (start/stop, direction, and speed)
• Display: 3-digit LED display for current speed. 3 LED indicators for operating state
• Power-off memory: Return to previous state when power on
• Prime key: Fast filling and emptying at maximum speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 90V-260V
• Power consumption: 30W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 2.3 kg (without head)
• IP rating: IP31
• Certifications: CE

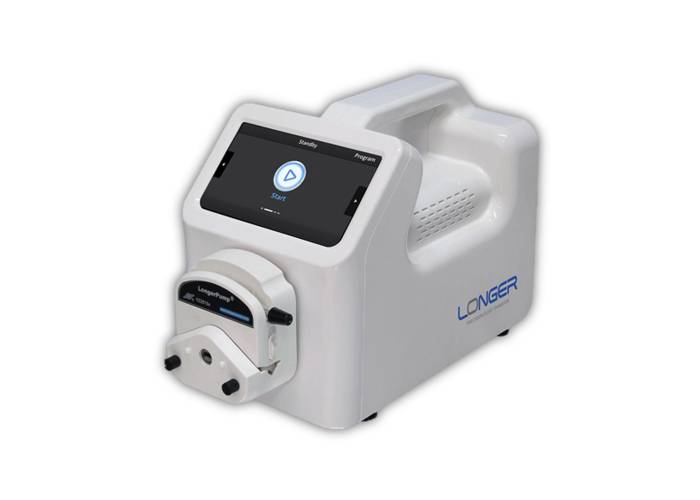

L100-1FS Intelligent Single-channel Peristaltic Pump features automatic pump head and tubing recognition for simplified operation and high-precision fluid handling. Its intuitive graphic interface and modular programming enable quick customization. Suitable for both lab and industrial use, compatible with AIO/AIO-SPE cells, flow-cell add-ons, and electrodes.

• Dimensions: 180 x 292 x 235 mm (L x W x H)
• Operating mode: Programming
• Channels: 1
• Flow rate: 0.15 µL/min – 32 mL/min
• Communication interface: USB or RS485 (RJ11). Modbus protocol
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Touchscreen control, footswitch control, external signal control, and communication control
• Display: 7” color LCD 1024×600
• Power-off memory: The pump can start operating at the desired time
• External control signal: Start/stop control, direction control: voltage level signal or switch signal (dry contact)
• Prime key: Fast filling and emptying at full speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 220V±20% / AC 110V±20%, 50Hz/60Hz
• Power consumption: 50W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 5.0 Kg
• IP rating: IP31
• Certifications: CE
• Details: Automatic identification of heads and tubing.

L100-1FS Intelligent Dual-channel Peristaltic Pump offers automatic pump head and tubing detection, ensuring reliable, precise fluid transfer. Modular programming and user-friendly interface allow easy setup. Ideal for laboratory and industrial environments, compatible with AIO/AIO-SPE cells, flow-cell add-ons, printed, and thin-film electrodes.

• Dimensions: 180 x 292 x 235 mm (L x W x H)
• Operating mode: Programming
• Channels: 2
• Flow rate: 0.15 µL/min – 32 mL/min
• Communication interface: USB or RS485 (RJ11). Modbus protocol
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Touchscreen control, footswitch control, external signal control, and communication control
• Display: 7” color LCD 1024×600
• Power-off memory: The pump can start operating at the desired time
• External control signal: Start/stop control, direction control: voltage level signal or switch signal (dry contact)
• Prime key: Fast filling and emptying at full speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 220V±20% / AC 110V±20%, 50Hz/60Hz
• Power consumption: 50W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 5.0 Kg
• IP rating: IP31
• Certifications: CE
• Details: Automatic identification of heads and tubing.

L100-1FS Intelligent Four-channels Peristaltic Pump simplifies fluid handling with automatic pump head and tubing identification. It provides high-precision transfer and an intuitive interface for easy program customization. Perfect for lab and industrial applications, compatible with AIO/AIO-SPE cells, flow-cell add-ons, and various electrodes.

• Dimensions: 180 x 292 x 235 mm (L x W x H)
• Operating mode: Programming
• Channels: 4
• Flow rate: 0.15 µL/min – 32 mL/min
• Communication interface: USB or RS485 (RJ11). Modbus protocol
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Touchscreen control, footswitch control, external signal control, and communication control
• Display: 7” color LCD 1024×600
• Power-off memory: The pump can start operating at the desired time
• External control signal: Start/stop control, direction control: voltage level signal or switch signal (dry contact)
• Prime key: Fast filling and emptying at full speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 220V±20% / AC 110V±20%, 50Hz/60Hz
• Power consumption: 50W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 5.0 Kg
• IP rating: IP31
• Certifications: CE
• Details: Automatic identification of heads and tubing.

L100-1F Intelligent Single-channel Peristaltic Pump is equipped with a 7-inch full-color touchscreen and graphic interface, enabling smooth operation. Ideal for complex multi-step programming, suitable for both laboratory and industrial settings. Compatible with AIO/AIO-SPE cells, flow-cell add-ons, printed, and thin-film electrodes.

• Dimensions: 180 x 292 x 235 mm (L x W x H)
• Operating mode: Programming
• Channels: 1
• Flow rate: 0.15 µL/min – 32 mL/min
• Communication interface: USB or RS485 (RJ11). Modbus protocol
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Touchscreen control, footswitch control, external signal control, and communication control
• Display: 7” color LCD 1024×600
• Power-off memory: The pump can start operating at the desired time
• External control signal: Start/stop control, direction control: voltage level signal or switch signal (dry contact)
• Prime key: Quick filling and emptying at maximum speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 220V±20% / AC 110V±20%, 50Hz/60Hz
• Power consumption: 50W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 5.0 Kg
• IP rating: IP31
• Certifications: CE

L100-1F Intelligent Four-channels Peristaltic Pump incorporates a 7-inch color touchscreen and graphic interface, facilitating efficient operation of complex programs. Suitable for lab and industrial use, compatible with AIO/AIO-SPE cells, flow-cell add-ons, printed, and thin-film electrodes.

• Dimensions: 180 x 292 x 235 mm (L x W x H)
• Operating mode: Programming
• Channels: 4
• Flow rate: 0.15 µL/min – 32 mL/min
• Communication interface: USB or RS485 (RJ11). Modbus protocol
• Speed: 0.1 – 100 rpm, CW/CCW
• Speed accuracy: 0.1 rpm
• Control mode: Touchscreen control, footswitch control, external signal control, and communication control
• Display: 7” color LCD 1024×600
• Power-off memory: The pump can start operating at the desired time
• External control signal: Start/stop control, direction control: voltage level signal or switch signal (dry contact)
• Prime key: Quick filling and emptying at maximum speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 220V±20% / AC 110V±20%, 50Hz/60Hz
• Power consumption: 50W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 5.0 Kg
• IP rating: IP31
• Certifications: CE

L100-1S Standard Four-channels Peristaltic Pump features precise speed control and flow rate calibration, providing a range from 0.15 µL/min to 32 mL/min. Designed for laboratory and light industrial use, and compatible with AIO/AIO-SPE cells, flow-cell add-ons, printed, and thin-film electrodes.

• Dimensions: 232 x 142 x 149 mm (L x W x H)
• Operating mode: Speed control and flow rate mode
• Channels: 4
• Flow rate: 0.15 µL/min – 32 mL/min
• Communication interface: RS485. Longer or Modbus protocol
• Speed: 0.01 – 100 rpm, CW/CCW
• Speed accuracy: 0.01 rpm
• Control mode: Membrane keypad, external signal, and communication control
• Display: LCD
• Power-off memory: Operating parameters will be saved automatically. The pump status when powered up could be set as stop or as the status before power loss
• External control signal: Start/stop, direction, and speed control (4-20mA, 0-5V, 0-10V, 0-10kHz external control module optional)
• Prime key: Fast filling and emptying at full speed
• Roller material: 10 (stainless steel)
• Tubing: I.D. < 3.17 mm, Wall thickness 0.8-1 mm
• Maximum pressure: 15 psi (1 bar)
• Power supply: AC 100-240V, 50/60Hz
• Power consumption: 25W
• Operating temperature: 0 to 40 ºC
• Humidity: < 80%
• Weight: 2.38 Kg
• IP rating: IP31
• Certifications: CE
