Enhance CIMPS setups with compatible accessories for light modulation, synchronization, and advanced PEC testing in AU & NZ.

CIMPS Accessories | Photoelectrochemical Add-ons AU & NZ

<p align="left"><strong>CIMPS Highlights:</strong></p>
<div>
<div>

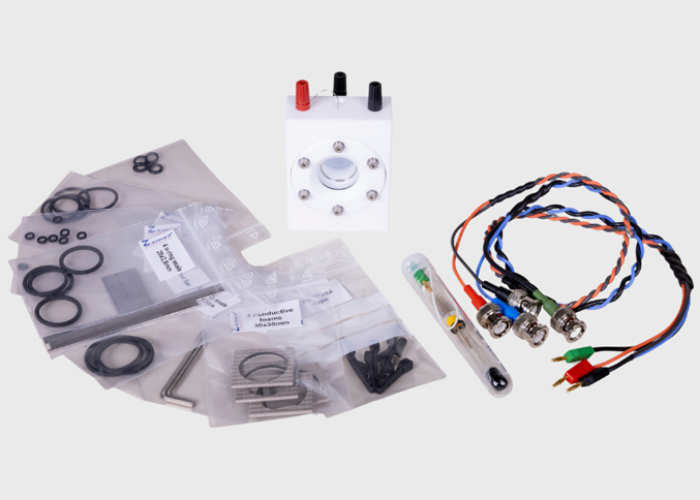

<p>The PECC-1/PECC-2 are specially tailored for testing electrode materials with photoelectrochemical techniques.</p>
<p>Manufactured from Teflon and PTCFE, the cells are highly stable against chemicals and are available with BK7 or quartz window.&nbsp;The cell geometry is optimized for the photoelectrochemical measurements and the cell comes with a Ag/AgCl reference electrode and a Pt counter electrode.</p>
<p>Photoelectrodes of different diameter (from 7 mm to 25 mm) can be mounted in the PECC-2 cell with the help of reducer kits. The PECC-2 cell also contains gas in-/outlets.</p>
</div>
<ul class="d-fetaures">
<li>Gas tight PEC cells</li>
<li>Reducer kit for different electrode sizes (d = 7 mm to 25 mm)</li>
<li><strong>PECC-1:&nbsp;</strong>Cell with front window</li>
<li><strong>PECC-2:</strong>&nbsp;Cell with windows on front and back</li>
</ul>
</div>

Custom PEC cells designed for water-splitting, solar fuel generation, and photochemical research setups.

Photoelectrochemical PEC Cells

PEC-Cells

<div class="woocommerce-product-details__short-description">
<p align="left"><strong>Light Sources Highlights:</strong></p>
<div>

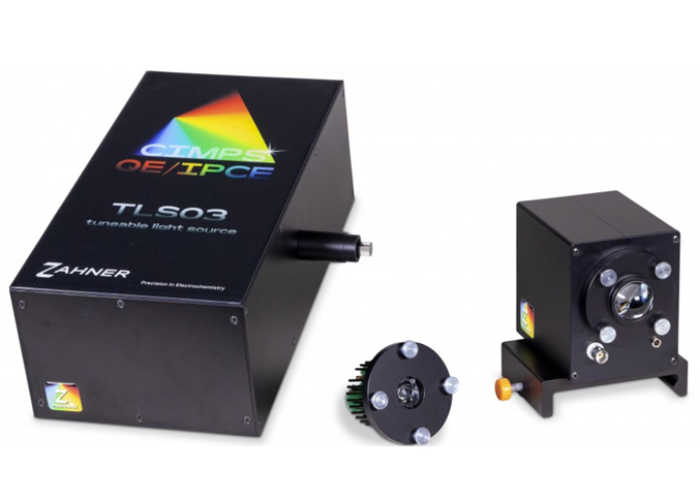

<div>The CIMPS system can be equipped with any plug and play LED from our 50 monochromatic LEDs, available in the broad wavelength range of 275 nm &ndash; 1550 nm. The portfolio also includes high power white light LEDs.</div>
<div>&nbsp;</div>
<div>The Tuneable light sources (TLS) consisting of multiple LEDs, a monochromator and a light feedback control unit, are available with/without UV extension.</div>
<ul class="d-fetaures">
<li>
<ul class="d-fetaures">
<li>Modular LEDs (available in wavelength range: 275 nm &ndash; 1550 nm)</li>
<li>Tuneable light source with and without UV extension</li>
<li>Wavelength of LEDs are subjected to up to 2% tolerance</li>
<li>Plug and Play LEDs</li>
</ul>
</li>
</ul>
</div>
</div>

Reliable and adjustable light sources for PEC, solar simulation, and optical testing applications.

Calibrated Light Sources for Labs

Light Sources

<p align="left"><strong>Light Exclusion Box Highlights:</strong></p>
<div>
<div>
<p>The&nbsp;<strong>Light Exclusion Box (LEB)</strong>&nbsp;is an ideal supplement for all CIMPS systems and extensions. It excludes ambient light ensuring reproducible measurements. With light-tight cable bushings on the left, right and back, it is specially tailored to the Zahner CIMPS system. The optical bench is reliably held in position by guides.</p>
<p>The LEB is made of aluminium, equipped with a grounding socket it also serves as a Faraday&rsquo;s cage.</p>
<p>Gas pressure dampers reliably hold the lid open when changing the sample.</p>
</div>
<ul class="d-fetaures">
<li>Outer dimensions: 60 x 33 x 23 cm<sup>3</sup>&nbsp;(without handle)</li>
<li>Material: Aluminium, black anodized</li>
<li>Grounding connector: 4 mm banana socket</li>
</ul>
</div>

Prevent stray light interference in sensitive optical or PEC experiments using our exclusion box design.

Light Exclusion Box for Labs

Light Exclusion Box
