Introduction

Corrosion is one of the most persistent challenges faced by industries worldwide. Whether in oil pipelines, aircraft alloys, biomedical implants, or reinforced concrete, the gradual degradation of metals compromises safety, increases maintenance costs, and shortens service life. Traditional methods like salt spray exposure or immersion tests provide valuable insights, but they are time-consuming, qualitative, and often fail to reveal the early mechanisms that initiate corrosion.

Electrochemical methods, particularly those based on potentiostat measurements, provide a faster and more precise way to study corrosion behaviour. A potentiostat corrosion test offers direct, quantitative data on corrosion rates, passivation, and pitting susceptibility under simulated service conditions. By carefully controlling the potential of a test sample and measuring the resulting current, engineers and researchers can probe corrosion processes at a fundamental level.

This article provides a detailed, scientifically accurate guide to potentiostat corrosion testing: how it works, the main electrochemical techniques, key parameters, advantages, limitations, and industrial applications.

What Is a Potentiostat Corrosion Test?

A potentiostat corrosion test is an electrochemical technique used to evaluate how easily a material corrodes in a specific environment. The potentiostat is an instrument that controls the potential of the working electrode (the material under investigation) with respect to a reference electrode, while simultaneously measuring the current flowing between the working electrode and a separate counter electrode.

This three-electrode configuration is essential for accurate corrosion studies:

• Working electrode (sample): the material being tested. It may behave anodically (oxidation/dissolution) or cathodically (reduction) depending on the applied potential.
• Reference electrode: a stable electrode of known potential (e.g., Ag/AgCl or saturated calomel electrode). It does not pass current and provides a fixed reference against which the working electrode’s potential is controlled.
• Counter electrode: an inert conductor (commonly platinum, graphite, or stainless steel) that completes the circuit and carries the current imposed by the potentiostat.
• Electrolyte: a conductive medium representing the service environment, such as seawater, acidic solution, simulated body fluid, or concrete pore water.

By scanning or holding the potential of the working electrode and recording the current response, the potentiostat reveals important corrosion characteristics such as thermodynamic tendency to corrode, kinetic rates, passivation, and localised breakdown.

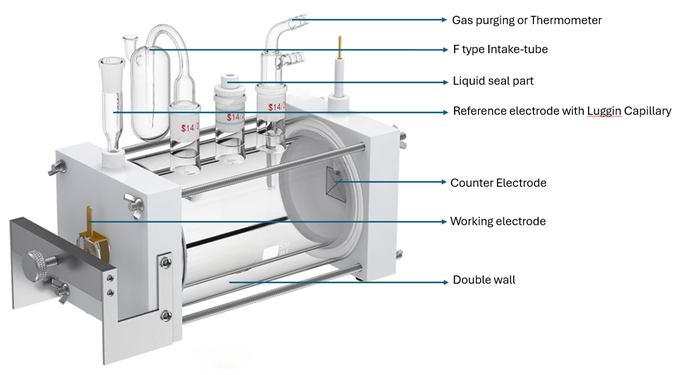

Figure 1. Laboratory corrosion test cell for potentiostat measurements, equipped with working, counter, and reference electrodes. The reference electrode is connected via a Luggin capillary to minimise IR drop. Additional ports allow gas purging, temperature measurement, and liquid sealing. The double-walled design enables temperature control using a circulating bath.

How Does the Test Work?

A typical potentiostat corrosion test follows these steps:

1. Immersion: The working, reference, and counter electrodes are immersed in the electrolyte. The working electrode surface should be well-defined (polished or coated) to ensure reproducible results.
2. Open Circuit Potential (OCP) Stabilisation: The sample is left at its natural potential without external polarisation until the potential stabilises. This establishes a baseline.
3. Controlled Polarisation: The potentiostat then applies either a small perturbation around OCP or a wider voltage sweep, depending on the test method.
4. Current Measurement: The current response is recorded. Since corrosion involves electron transfer (metal oxidation and cathodic reduction), the measured current provides direct information on the corrosion rate and mechanism.

Compared to simple visual inspections, this approach generates quantitative, time-resolved data in under an hour.

Common Potentiostat Corrosion Test Methods

1. Open Circuit Potential (OCP)

• Purpose: Determines the natural potential of the metal when immersed in an electrolyte.
• Method: The working electrode is monitored without any applied bias. The system stabilises at a potential called the corrosion potential (E_corr).
• Insight: A more negative E_corr suggests a greater thermodynamic tendency for oxidation, but it does not by itself define corrosion rate. OCP is often used to compare materials or monitor changes in surface condition over time.

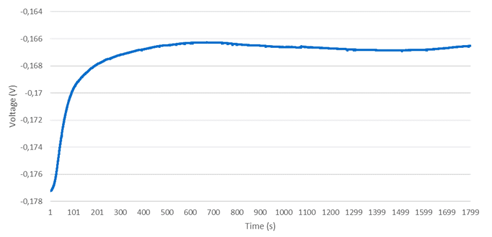

  Figure 2. Types of potentiostat corrosion tests showing Open Circuit Potential (OCP) measurement

  2.Linear Polarisation Resistance (LPR)

  • Purpose: Provides a rapid, non-destructive estimate of corrosion rate.
  • Method: The potential is perturbed slightly (±10–20 mV around OCP). The resulting current-potential slope gives the polarisation resistance (R_p).
  • Analysis: Using the Stern–Geary equation, Rp is converted into the corrosion current density (I_corr), which is directly proportional to corrosion rate. Accurate results require knowledge of anodic and cathodic Tafel slopes.
  • Applications: Real-time corrosion monitoring in pipelines, cooling systems, and reinforced concrete.



  Figure 3. Linear Polarisation Resistance (LPR) test in potentiostat analysis

  3.Potentiodynamic Polarisation

  • Purpose: Maps the full electrochemical behaviour of a material, including active dissolution, passivation, and breakdown.
  • Method: A controlled sweep of potential (e.g., from −250 mV to +1 V vs. OCP) is applied at a defined scan rate. Both anodic and cathodic branches are measured.
  • Insight:
  • Passivation potential (E_pp): where a protective oxide film forms.
  • Breakdown or pitting potential (E_b or E_pit): where the passive film fails and localised corrosion accelerates.
  • Critical current density: indicates aggressiveness of anodic dissolution.
  • Applications: Essential for studying stainless steels, aluminium alloys, and coated systems.

  Electrochemical Impedance Spectroscopy (EIS) (advanced)

  Although not always included in basic blogs, EIS is widely used with potentiostats for corrosion. By applying a small AC perturbation, it measures resistance and capacitance of electrochemical interfaces, giving insights into coating performance, diffusion, and film stability.

  Key Parameters Measured

  • Corrosion potential (E_corr): Natural potential of the system at equilibrium.
  • Corrosion current density (I_corr): Proportional to uniform corrosion rate.
  • Polarisation resistance (R_p): Inverse measure of corrosion tendency.
  • Pitting potential (E_pit): Threshold for localised corrosion initiation.
  • Passivation behaviour: Indicates the ability of a material to form stable protective films.

  By analysing these parameters, industries can predict service life, compare materials, and design protective measures.

  Advantages of Potentiostat Corrosion Tests

  1. Speed: Results available in less than an hour, versus days or weeks for salt spray or immersion tests.
  2. Flexibility: Electrolytes can be chosen to simulate specific environments (marine, acidic, physiological).
  3. Small Sample Size: Useful for thin films, micro-components, or novel alloys where material availability is limited.
  4. Repeatability: Controlled potentials reduce environmental variability, ensuring reproducible data.
  5. Quantitative Data: Provides numerical corrosion rates and mechanistic insights rather than just visual appearance.

  Comparison with Other Corrosion Tests

  Feature	Potentiostat Test	Salt Spray Test	Immersion Test	Visual Inspection
  Duration	<1 hour	48–1000 h	Days–months	Continuous
  Data	Quantitative (Icorr, Ecorr, Epit)	Qualitative	Weight loss	Qualitative
  Sample Size	Small to micro-scale	Large panels	Medium	Any
  Environment Control	Custom electrolytes	Salt fog only	Natural/controlled	Ambient
  Repeatability	High	Medium	Medium	Low

  This highlights why potentiostat methods are favoured for rapid screening and mechanistic studies.

  Industrial and Research Applications

  • Oil and Gas: Monitoring pipeline steels in brines and CO₂-rich environments.
  • Aerospace: Evaluating lightweight alloys and coatings against atmospheric and fuel-related corrosion.
  • Automotive: Assessing paint, coatings, and galvanic coupling in multi-metal structures.
  • Electronics: Studying solder joints and connectors under humidity or condensation.
  • Biomedical: Testing implants in simulated body fluids (saliva, sweat, blood plasma).
  • Construction: Assessing rebar corrosion in chloride-contaminated concrete.

  By tailoring electrolyte composition, tests can closely replicate service environments, allowing engineers to predict material durability.

  Frequently Asked Questions

  Q1: How accurate are potentiostat corrosion tests?

  Very accurate when properly calibrated. They provide quantitative insights, but accuracy depends on electrode surface preparation, electrolyte choice, and correct parameter extraction.

  Q2: Can they replace salt spray tests?

  Not entirely. Salt spray is still valuable for long-term coating performance, while potentiostat tests are ideal for rapid, mechanistic studies. Many industries use both in combination.

  Q3: What materials can be tested?

  Any electrically conductive material, including steels, aluminum, titanium, copper alloys, coatings, and composites with conductive paths.

  Q4: Do they simulate real conditions?

  Yes, electrolytes can be adjusted to replicate seawater, acidic soils, or biological fluids. However, they do not account for all mechanical or environmental stressors.

  Conclusion

  The potentiostat corrosion test has become a cornerstone of modern materials evaluation. By precisely controlling electrode potentials and recording current responses, it delivers rapid, reproducible, and quantitative insights into corrosion mechanisms. From estimating uniform corrosion rates to predicting pitting resistance and passivation behaviour, potentiostat testing empowers engineers and researchers to make informed decisions in material selection, protective coating design, and lifetime prediction.

  Compared with slower, traditional methods like salt spray or immersion testing, potentiostat techniques provide faster, more reliable results while using smaller samples and customizable electrolytes. They do not replace long-term exposure studies, but they complement them by offering mechanistic understanding and accelerated screening. This versatility makes potentiostat corrosion testing indispensable across industries — from oil and gas pipelines to aerospace alloys, automotive coatings, biomedical implants, and construction materials.

  If you are ready to strengthen your research or industrial testing, ScienceGears offers a full range of potentiostat solutions  from portable potentiostats and single-channel systems to advanced bipotentiostats with RRDE, multichannel platforms, current boosters, and modular setups designed for cutting-edge corrosion and electrochemical research.

  Contact our experts today to find the right instrument for your application and receive personalized support in setting up dependable, advanced testing workflows.

  In short, potentiostat corrosion testing is more than a laboratory technique it is a practical tool to save costs, enhance safety, and ensure reliability against one of industry’s oldest challenges: corrosion.
