Imagine being a detective with a device so precise it can tell you the secret composition of almost any material you come across, metal alloys, paints, biological samples, even water, all in a matter of seconds, without the need for complicated sample preparation or destruction. This is not science fiction but rather the powerful reality of Laser Induced Breakdown Spectroscopy (LIBS). Behind this seemingly magical technology is a fascinating interplay of lasers, plasma, and atomic emissions that opens a doorway to instant elemental analysis. Although first demonstrated in the 1960s and developed significantly in the 1990s, LIBS remains surprisingly underutilised and underappreciated outside specialised fields. Many blogs and articles skim over its true capabilities, intricate challenges, and practical applications. This blog seeks to illuminate the depths of LIBS using insights from the detailed, scholarly source by Kim and Lin (2012), revealing aspects most discussions miss, bridging technical clarity with compelling storytelling.

The Spark of Discovery: What is LIBS?

LIBS is a type of atomic emission spectroscopy that relies on laser-induced plasma rather than flames, arcs, or sparks. It harnesses a powerful, focused laser pulse that atomises a minute portion of a sample, creating a high-temperature plasma. This plasma contains highly excited atoms and ions of the sample elements, which emit characteristic light as they return to their ground states. Capturing this emitted light allows identification and semi-quantification of the elemental composition.

Unlike traditional methods that require flame excitation, chemical preparation, or vacuum environments, LIBS delivers sample analysis typically within microseconds. The laser pulse is often as brief as 10 nanoseconds, intensities reach gigawatts per square centimetre, and ablation spots as small as 10 microns are common, enabling ultra-localised measurements.

A vivid metaphor is the tiny spark that lights a candle, but on a trillionth of a second scale and magnified in energy immensely. This fleeting spark is the essence of LIBS, creating atomic light signatures so unique they become elemental fingerprints.

Fig. 1: Conventional LIBS system configuration

How LIBS Works: The Trio of Components

The fundamental LIBS setup comprises three essential components:

• A pulsed laser, most often a Nd: YAG at 1064 nm (or its harmonics 532, 355, 266 nm), delivers the breakdown energy.

• The sample itself can be solid, liquid, gas, or even biological matter.

• A spectrometer and detector system capturing the emitted light with high temporal and spectral resolution.

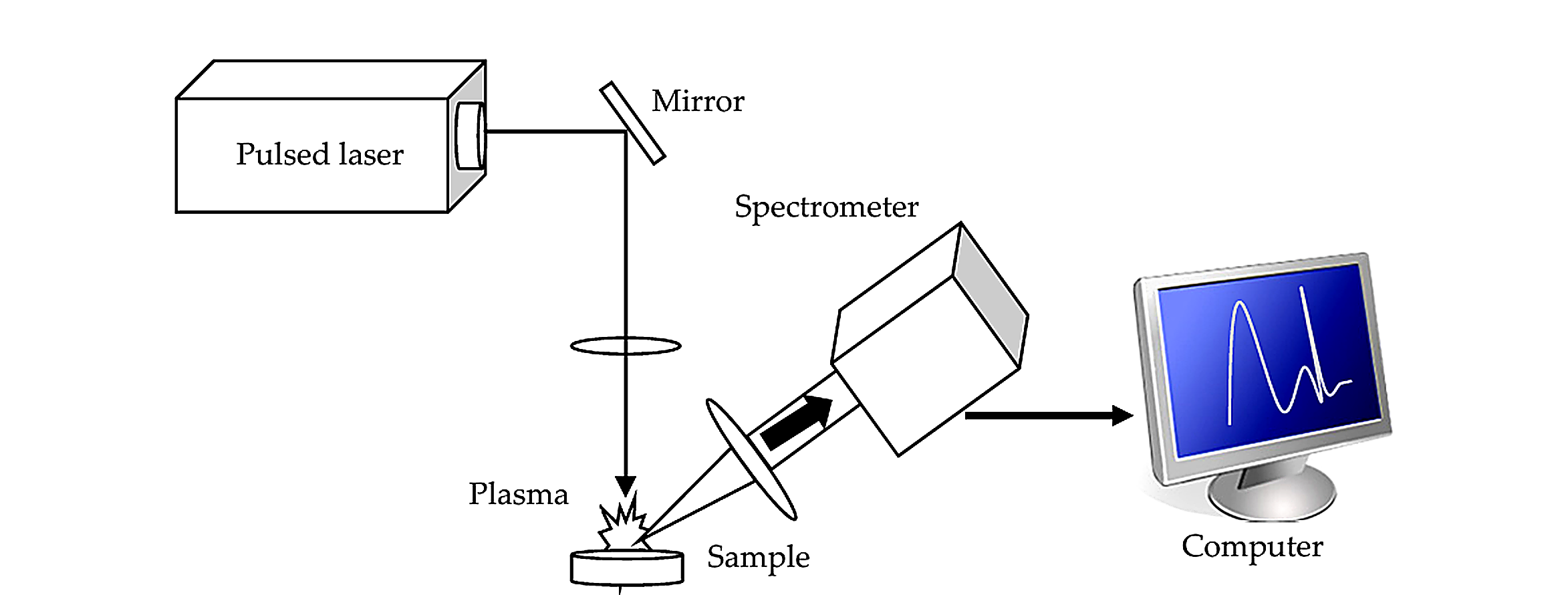

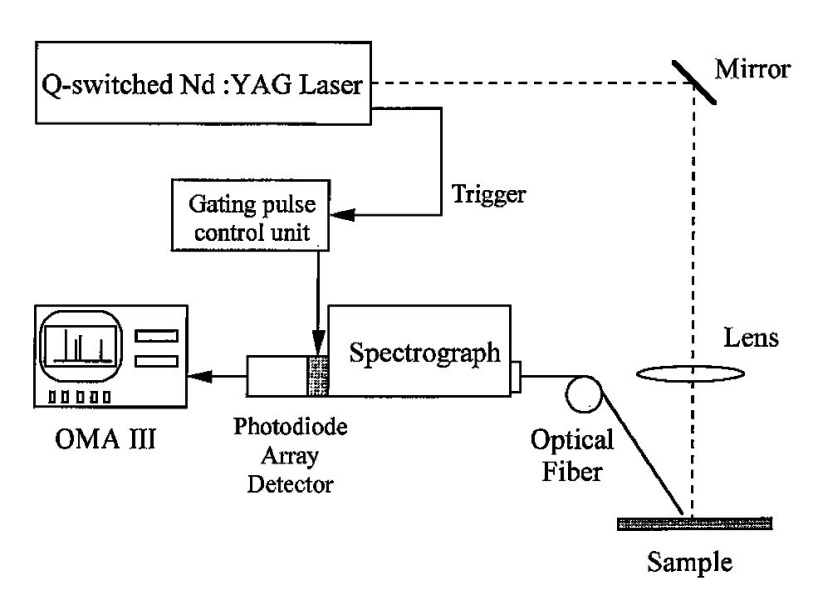

Fig. 2: Schematic diagram of the LIBS setup with ND: YAG laser

The laser pulse is focused through optics to deliver a concentrated energy density threshold needed to ablate the surface and produce plasma. The plasma expands rapidly within nanoseconds and emits photons across the ultraviolet to visible wavelengths. The emitted light is funnelled into the spectrometer, dispersed according to wavelength by gratings or prisms, and recorded by sensitive gated detectors, often CCD arrays, to separate the characteristic emission lines from the broad continuum background light.

Temporal gating of detectors is crucial because the bright background from the continuum emission dominates during the first tens of nanoseconds, while ionic and atomic lines can persist from tens to hundreds of nanoseconds. Optimising the delay between the laser pulse and detector capture improves signal-to-noise ratios dramatically by filtering out early broadband radiation and isolating sharp elemental lines.

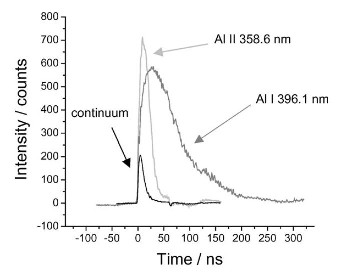

Fig. 3: Temporal profile of continuum emission and aluminium emission

Unique Advantages and Challenges

The appealing hallmark of LIBS is the elimination of complex sample preparation. It analyses microscopic spots in real time with near or quasi-nondestructive effects, opening applications from mining to forensics, and even extraterrestrial exploration.

Yet this advantage has a flip side. Because LIBS probes a tiny volume (a few microns), sample inhomogeneity can cause signal fluctuation, often referred to as the “matrix effect.” For example, direct analysis of heterogeneous samples like painted surfaces or biological tissues may yield variable results if not averaged over many measurement points or combined with statistics. The laser energy threshold and plasma lifetime vary with sample state (gas, liquid, solid) and composition, requiring careful empirically-tuned setups for each application.

Diving Deeper: LIBS Applications You Didn’t Expect

While most blogs mention LIBS’s ability to analyse metals or environmental samples, the source reveals diverse, sophisticated uses rarely discussed.

1. Complex Paint and Coating Characterisation

Paints and coatings present a notorious analytical challenge due to their complex, multi-layered formulations containing pigments, binders, corrosion inhibitors, and fillers often all fully cured into a chemically inert matrix. Traditional chemical analyses struggle to identify cured paint layers.

LIBS, however, can penetrate successive layers by firing multiple laser pulses on the same spot, ablating micrometre-thick layers sequentially. This capability allows depth profile analysis of layered coatings. For example, differentiation between multiple aluminium alloys beneath different paint coatings was shown successfully by identifying fingerprints of zinc, magnesium, and copper peaks characteristic of certain alloys.

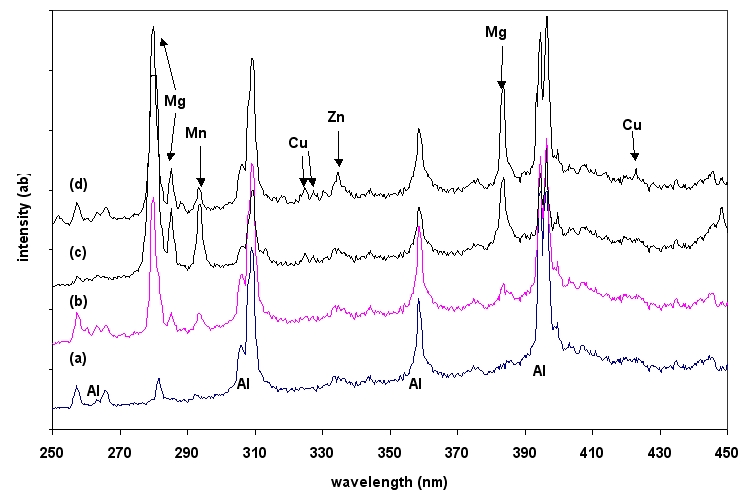

Fig. 4: LIBS spectra of aluminium alloys

Further, industrial paints from Caterpillar’s OEM were fingerprinted by capturing elemental emission profiles. Primer paints show abundant calcium carbonate and magnesium silicate peaks, whereas top coat formulations differ markedly, enabling discrimination down to 90-95% confidence in matching specific manufacturers’ formulations. This capability could be critical for quality control in heavy machinery manufacturing.

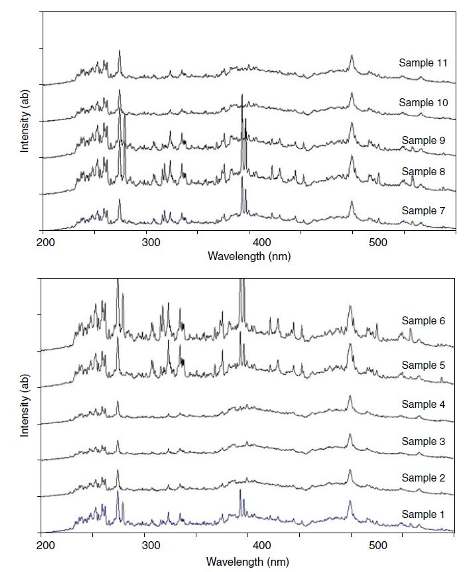

Fig. 5: LIBS spectra for industrial paint samples obtained from Caterpillar Inc.

2.Biological and Organic Material Analysis

One of the more startling applications is bacterial strain classification and biomaterial analysis. LIBS spectral fingerprints reflect inorganic elements like calcium, phosphorus, sodium, and potassium in bacteria, which vary significantly during different life cycle stages, such as vegetative versus spore formation.

The source describes how particular Bacillus species concentrate calcium dipicolinate in spores, producing distinctive, strong emission lines not observed in non-spore-forming bacteria like E. coli. This difference can rapidly identify bacterial states, with potential uses in biosecurity and clinical diagnostics. The method requires minimal sample preparation (bacteria grown on agar plates), making it a potential rapid screening tool.

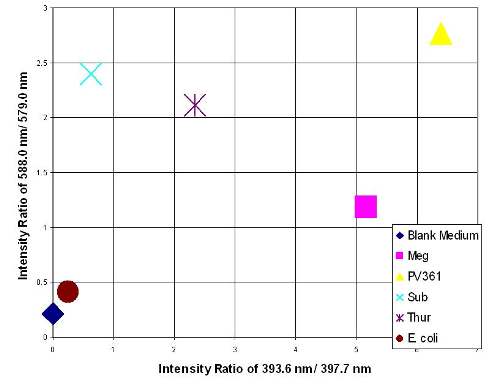

Fig. 6: Intensity ratio plot for bacteria discrimination

3.Trace Metal Analysis in Liquids Using Ion-Capture Membranes

Liquids and gases are traditionally challenging for LIBS due to the higher laser thresholds required to generate plasma, as well as greater signal instability. A novel workaround involves converting the liquid sample’s trace metals into a solid form by filtering through ion-exchange membranes that concentrate the metal ions in a thin solid matrix.

Copper ions in solution are filtered onto such membranes and then analysed by LIBS. The source details how control over vacuum suction pressure on the membrane is critical for reliable ion concentration. Too slow or too fast filtration causes signal fluctuations or ion bypass. Correct operation yields a linear calibration curve for copper from 0.5 mg/L to 15 mg/L, making this approach suitable for environmental and water quality screening.

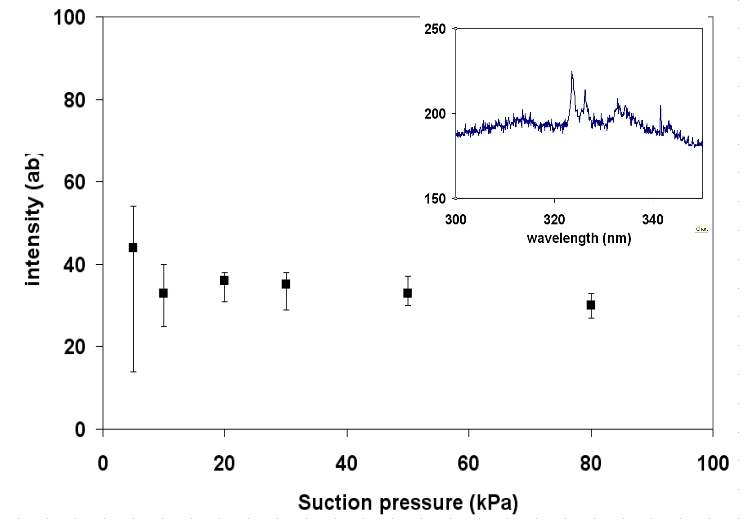

Fig. 7: LIBS intensity of Cu at different suction pressures

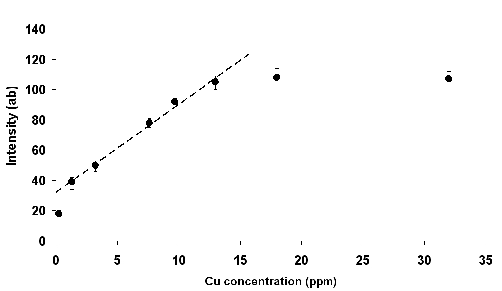

Fig 8: LIBS intensity measurements for low concentration Cu samples

Notably, copper levels in stagnant tap water spiked to 100–270 µg/L (well above the WHO guideline of 2 mg/L), illustrating LIBS’s relevance for public health monitoring.

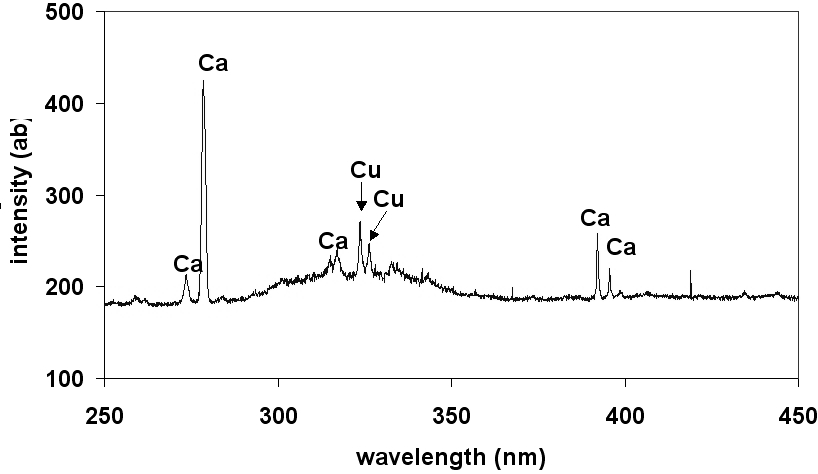

Fig. 9: LIBS spectrum of ion-captured membrane from tap water

4.Geological and Ceramic Material Mapping

LIBS lends itself exceptionally well to compositional mapping by combining laser ablation with scanning stages. One study referenced in the source showed high-resolution element distribution mapping on polished granite rock sections for barium, lead, strontium, and iron. Colour-graded maps helped identify ore veins and differences in mineral content, invaluable for mining exploration and quality control.

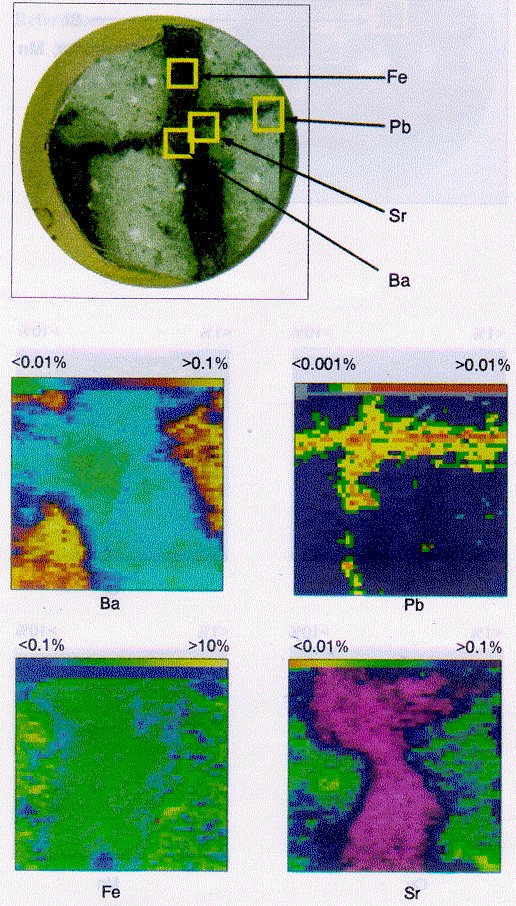

Fig. 10: Elemental distribution mapping for granite rock section

Similarly, rapid mapping of copper patterns on printed circuit boards revealed not only intentional conductors but also contamination spots that could cause circuit failures, enabling fast industrial quality assurance.

Technical Nuggets: What Most Blogs Don’t Tell

• Laser Point Size and Energy Density: The laser beam, typically starting ~1 cm in diameter, is focused by lenses down to tiny spots (~10 microns). Typical fluences are in the range of 1–100 J/cm², corresponding to peak power densities of ~10⁸–10⁹ W/cm².

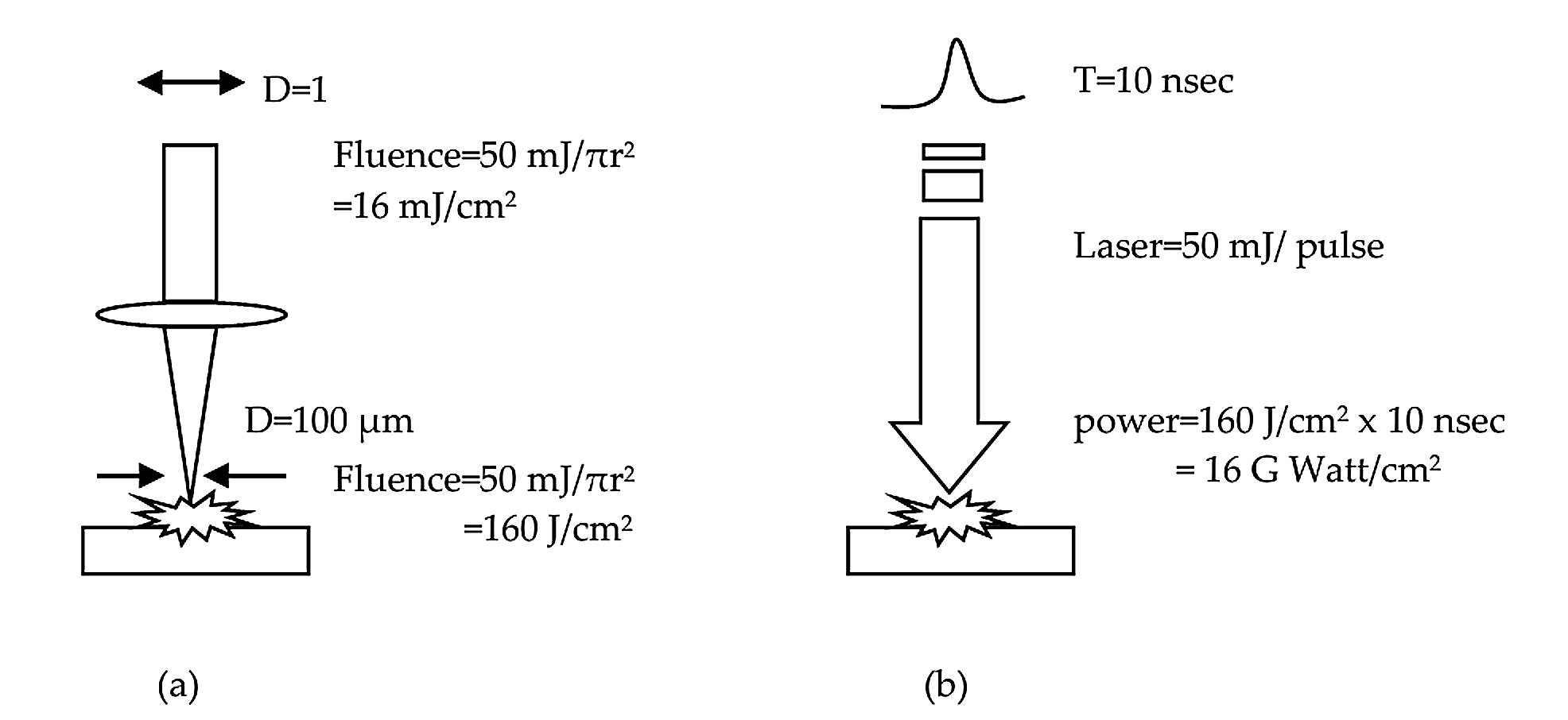

Fig. 11: Laser energy delivery for breakdown condition a) focusing effect, (b) pulsing effect.

• Temporal Profiles of Emission: Different elements and ionisation states decay over different timescales in the plasma. Ion lines tend to decay faster (~24 ns) compared to neutral atoms (~80 ns), explaining why the detection gating window profoundly affects LIBS spectral quality.

• Spectrometer Resolution and Detectors: Common CCD detectors have ~0.3 nm resolution, adequate for many elements but insufficient for dense spectral lines in complex mixtures. Echelle spectrometers using higher diffraction orders and 2D CCD arrays can reach 0.1 nm resolution across a large wavelength span, but at significantly higher cost.

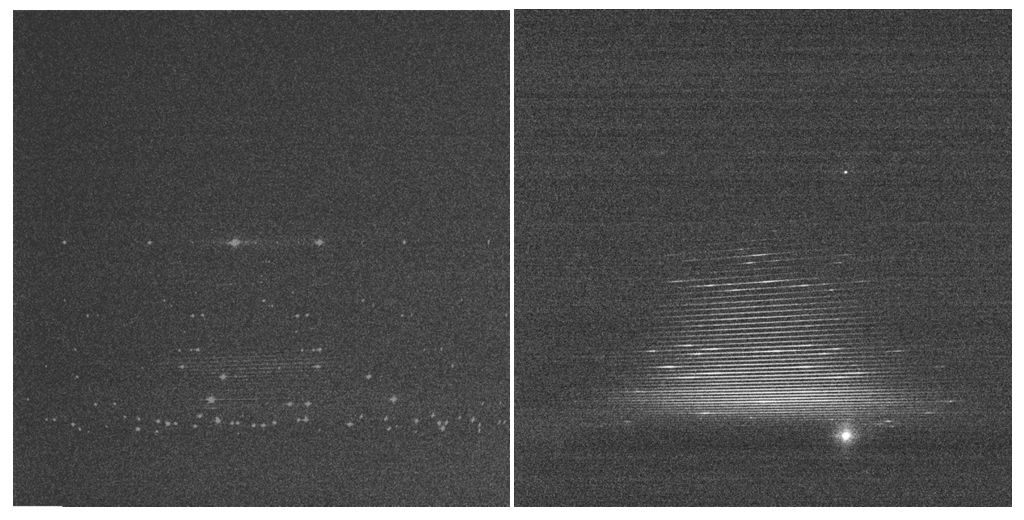

Fig. 12: Echelle spectrometer dispersion image (a) Hg lamp, (b) LIBS spectrum of Sn metal

• Matrix Effects and Calibration Challenges: Although LIBS does not require sample prep, ensuring quantitative accuracy demands careful calibration for specific sample types. Variations in surface reflectivity, roughness, and elemental inhomogeneity mean repeated sampling and averaging or chemometric corrections are essential.

• Depth Profiling with Multiple Pulses: Each laser pulse ablates a thin layer (~microns). Consecutive measurements can build a depth profile explaining layered structures like coatings or geological strata, a capability absent in many other spectrometric techniques.

• Ion-Capture Membrane Depth Effect: When filtering liquids through membranes, the metal ions embed through a depth profile in the filter. Multiple laser shots at the same spot are needed to ablate all embedded ions for accurate quantification rather than relying on just a single shot.

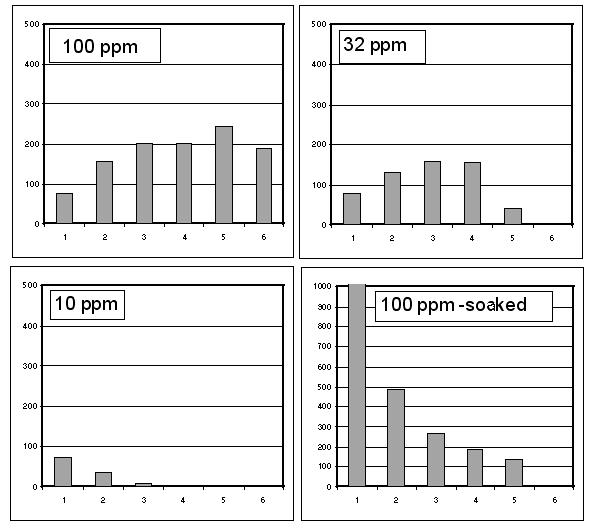

Fig. 13: Intensity change by consecutive laser shots on membranes

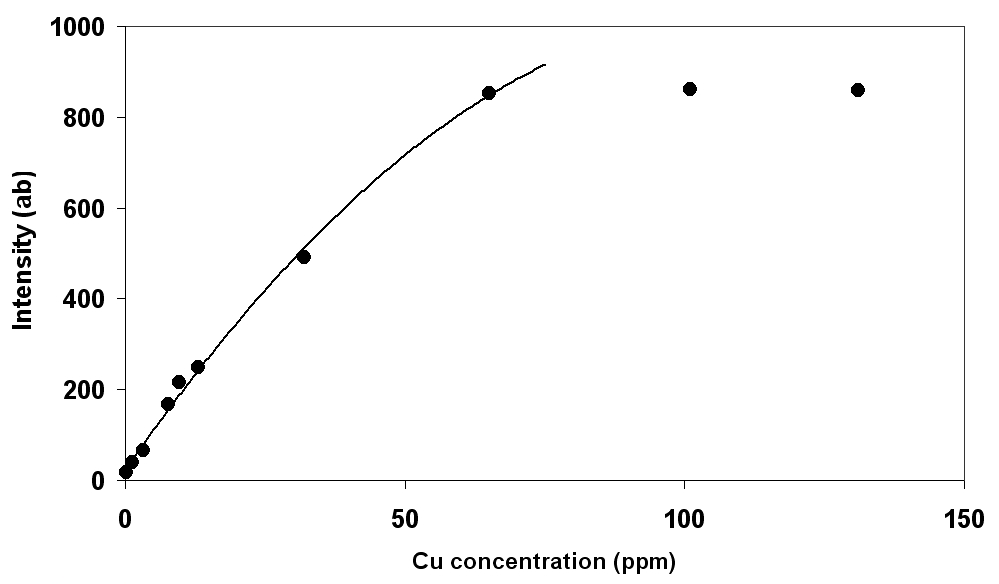

Fig. 14: Modified calibration curve integration for the membrane

Why LIBS Matters Today and Tomorrow

The power of LIBS lies in its rapid adaptability, capable of analysing metals, environmental samples, paints, biological materials, complex multilayer composites, and aqueous solutions. Its real-time analysis with minimal prep means it could revolutionise on-site quality control, security screening, biomedical diagnostics, environmental monitoring, and extraterrestrial exploration alike.

Despite these advantages, LIBS adoption is limited by factors such as equipment cost, technical complexity, and interpretational challenges. The source emphasises the need to optimise system design for specific applications, highlighting promising trends towards compact, remote, and handheld LIBS devices that make the technology accessible beyond specialised labs.

Frequently Asked Questions (FAQs)

What is LIBS in spectroscopy?

(LIBS) Laser Induced Breakdown Spectroscopy is an analytical technique that uses a short, intense laser pulse to create a microplasma on the surface of a sample. This plasma contains excited atoms and ions from the sample, which emit characteristic light as they return to their ground states. By collecting and analysing this emitted light spectrum, LIBS can rapidly determine the elemental composition of a material, covering a wide range of elements, including light and heavy elements. It requires no complex sample preparation, works with solids, liquids, and gases, and delivers results in seconds.

The process involves laser ablation, where a tiny portion of the sample is vaporised and ionised to form plasma. This plasma's emitted light is captured by a spectrometer for spectral analysis, with unique emission peaks corresponding to different elements. LIBS is widely used in fields from industrial quality control and mining to biological analysis and planetary exploration due to its speed, versatility, and minimal sample destruction.

How does a LIBS analyser work?

A pulsed laser ablates the sample to form plasma; emitted light from excited atoms is collected and analysed by a spectrometer to identify elements.

What are the advantages of laser-induced breakdown spectroscopy?

Advantages include minimal sample prep, rapid multi-element analysis, portability, real-time results, and applicability to solids, liquids, and aerosols.

Is LIBS non-destructive?

LIBS causes minimal sample damage, usually localised micro-ablation, so it is often considered quasi-nondestructive.

Where is LIBS technology used?

It is used broadly in mining, metallurgy, environmental monitoring, recycling, cultural heritage, coatings quality control, and biological analysis.

Science Gears Offering: LB1000S Handheld LIBS Element Analyser

Science Gears proudly offers the LB1000S Handheld LIBS Element Analyser, a fast, accurate, and comprehensive device designed for real-time elemental analysis on-site. Utilising eye-safe 1535nm Class 1 lasers, the LB1000S delivers precise multi-element detection within just 5 seconds. Sim

The LB1000S stands out with features including automatic metal matrix recognition to minimise human error, broad light element detection (Al, Mg, Si), and robust connectivity options such as Beidou positioning, 4G/5G, and WiFi for seamless data uploading. Its versatility accommodates aluminium-, copper-, and iron-based alloys, with matrix customisation available to fit specific industry needs. Ideal for applications ranging from recycled metal recovery to mineral exploration, the LB1000S is engineered for safety, speed, and precision to enhance your quality control and field analysis workflows.

Conclusion: Laser Induced Breakdown Spectroscopy ( LIBS ) is a dazzling intersection of laser physics, spectroscopy, and analytical chemistry that unlocks elemental information invisible to the naked eye and often to more complex traditional methods. Realising the full potential of LIBS depends on appreciating both its elegant operation and its nuanced challenges discussed here. From scratching paint surfaces to spotting bacterial spores and measuring metals in water, LIBS tells the elemental story quickly, precisely, and comprehensively, making it a truly revolutionary tool in modern analytical science.
