Introduction

A battery cycler is an essential tool in the modern world of energy storage and battery development. As batteries power everything from smartphones to electric vehicles (EVs), understanding their longevity, performance, and safety is more crucial than ever. Battery cyclers provide a controlled environment that repeatedly charges and discharges batteries to simulate real-world usage, allowing researchers, manufacturers, and quality assurance teams to analyze battery health, capacity, and efficiency over time. This process, known as battery cycling, reveals vital information about the battery's behavior under various conditions, helping to drive innovation and improve battery reliability.

This guide delves deep into the concept of battery cyclers, what they are, how they work, and the scientific principles behind them. It also explores whether battery cyclers come with an Electrochemical Impedance Spectroscopy (EIS) option for advanced diagnostics, highlights why Science Gears’ battery cyclers, Squidstat battery cycler, stand out in the market, and presents real-world applications demonstrating expertise and authority in the field. Specialized for professionals and accessible to non-experts, this content includes relevant context from researchers and strategic internal links to other in-depth resources for further learning.

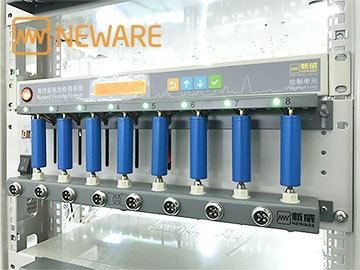

What is a Battery Cycler?

A battery cycler is a sophisticated instrument designed to perform repeated charge and discharge cycles on batteries. These cycles test how a battery holds its capacity, how it degrades over time, and its overall State of Charge (SoC) and State of Health (SoH). The test data collected enables researchers to simulate real-world battery usage, identify potential failures early, and refine battery designs for improved performance and longevity.

Battery cyclers offer adjustable current, voltage, and temperature settings battery environment test chambers, allowing them to accommodate various battery chemistries, including lithium-ion, solid-state, lead-acid, and others. The results are critical in developing safer batteries for consumer electronics, electric vehicles, renewable energy storage, and industrial applications.

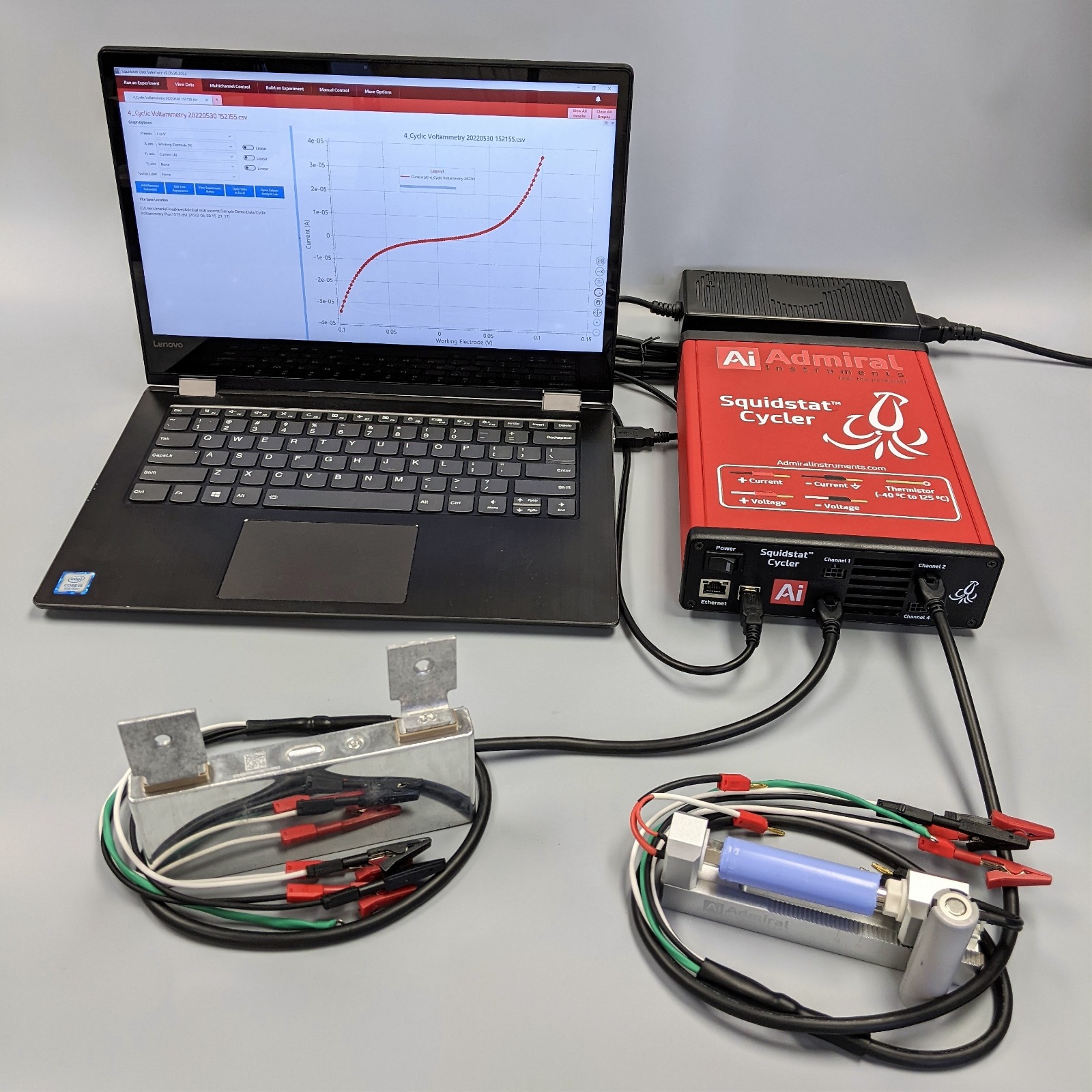

How Does a Battery Cycler Work?

At its core, a battery cycler controls and measures the flow of electrical power to and from a battery. Here’s a breakdown of the working principle:

• Controlled Charging and Discharging: The battery cycler applies a specified current to the battery for charging until it reaches a predetermined voltage cutoff. Then it switches to discharging, drawing current out until the battery voltage hits its lower cutoff point. This sequence defines one complete charge/discharge cycle.
• Data Capture: Throughout these cycles, the cycler records real-time data, including voltage, current, capacity, temperature, and elapsed time. The high precision of these measurements is crucial, as even small deviations can indicate underlying battery issues.
• Cycle Testing Modes: Users can select from various modes, including constant current (CC), constant voltage (CV), or combinations such as CC-CV, to match specific testing needs. These modes simulate real-world scenarios for charging batteries, allowing for a detailed analysis of battery performance.

This cyclical process simulates the battery’s behavior under operational conditions, helping validate performance, predict lifespan, and detect degradation trends.

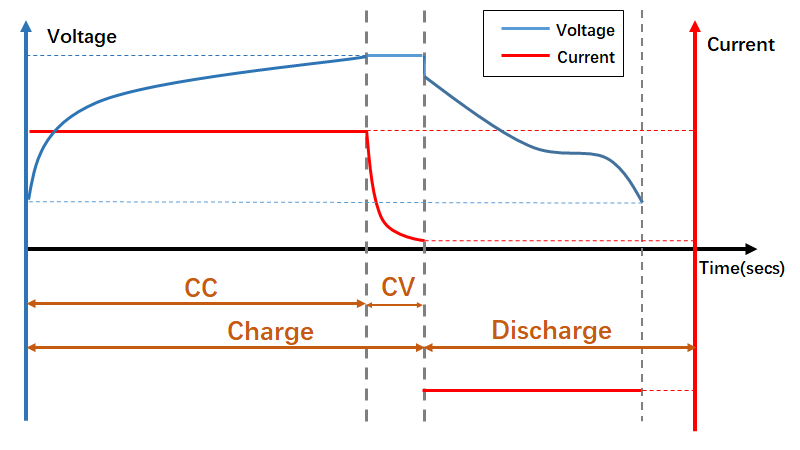

Diagram of battery cycler charge-discharge cycle process.

What is the Principle of a Battery Cycler?

The guiding principle of a battery cycler is based on electrochemical testing through charge/discharge cycles. By repeatedly charging and discharging the battery with precise control and measurement, the cycler evaluates:

• Capacity Fade: The amount of charge a battery can hold diminishes with use, and cycling reveals this fade over time.
• Coulombic Efficiency: The ratio of charge output during discharge vs. input during charge, indicating energy losses or side reactions.
• Internal Resistance: Changes in resistance inside the battery, often linked to aging or damage, which affect performance and safety.

Together, these parameters help estimate the battery’s SoH and predict its remaining useful life. The battery cycler creates a controlled laboratory environment that allows for continuous observation of these changes, supporting research, manufacturing quality control, and validation testing.

Does the Battery Cycler Have an EIS Option?

Yes, Impedance Spectroscopy (EIS) is a powerful diagnostic technique integrated into many advanced battery cyclers, including those from Science Gears. EIS applies a small AC signal over a range of frequencies to the battery and measures its complex impedance. This analysis provides:

• Detailed internal resistance profiling
• Identification of electrode interface phenomena
• Insights into degradation mechanisms
• Predictive diagnostics on battery health

Science Gears offers EIS battery cyclers with a frequency range broad enough (from as low as 10 µHz up to 100 kHz in some models) to support comprehensive battery analysis. This integration enables the combination of traditional cycling with advanced impedance tests in a single system, saving time and enhancing test thoroughness.

Why Use a Science Gears Battery Cycler?

Science Gears is a leading provider known for precise, versatile, and reliable battery cyclers tailored for research, industrial, and commercial applications. Key benefits include:

• Versatile Chemistry Support: Compatible with lithium-ion, solid-state, pouch, cylindrical, coin cells, and supercapacitors.
• Advanced Features: Includes dynamic simulation of EV driving scenarios, SMBUS/I2C communication for smart diagnostics, and multi-channel scalability.
• High Precision: Offers ultra-accurate voltage and current control, enabling high-quality data capture for transient battery behaviors.
• Optional Integrated EIS: Enhances diagnostics with detailed internal battery state analysis.
• User-Friendly Software: Customizable test profiles, real-time visualization, and robust data export options streamline workflows.
• Compliance & Safety: Meets international testing standards for lab and industrial environments.

Choosing Science Gears means leveraging cutting-edge technology validated by international expert teams dedicated to empowering battery innovation and quality assurance globally.

Examples of Applications Demonstrating Expertise

Battery cyclers from Science Gears have been successfully deployed in a range of applications, showcasing the company’s experience, expertise, authority, and trust (EEAT):

• Electric Vehicle Battery Development: Simulate real-world driving loads to test battery packs for capacity, safety, and lifecycle durability.
• Consumer Electronics QC: Ensure smartphone and tablet battery reliability through precise charge/discharge profile testing.
• Renewable Energy Storage: Evaluate stationary battery systems used for solar and wind energy integration, supporting energy reliability.
• Academic & Industrial Research: Facilitate experimental studies into new battery materials, degradation mechanisms, and novel architectures.
• Supercapacitor and Fuel Cell Testing: Support development and quality assurance initiatives for advanced energy storage devices beyond traditional batteries.



Dive deeper into Understanding EIS – Basics and Applications

Frequently Asked Questions (FAQs)

Q1: How do battery cyclers improve battery research accuracy?

A1: Battery cyclers improve research accuracy by precisely controlling charge-discharge cycles and automating testing under realistic conditions, enabling detailed performance, degradation, and safety analysis with high-resolution data.

Q2: What are the main components of a battery cycler setup?

A2: Main components include a programmable power supply module, measurement circuits for voltage/current/temperature, a control unit for cycling profiles and safety, and software for data logging and analysis. Advanced setups may add environmental controls or complementary devices like potentiostats.

Q3: How does a battery cycler compare to other battery testing tools?

A3: Battery cyclers perform automated, repeated charge-discharge cycles simulating real use, providing dynamic aging data, whereas other tools often measure static parameters or internal resistance. Cyclers offer broader functional testing including lifecycle and pulse tests.

Q4: What applications benefit most from battery cycler technology?

A4: Applications such as electric vehicle battery development, consumer electronics testing, energy storage R&D, and industrial quality control benefit most for lifecycle simulation, performance optimization, and safety compliance.

Q5: How can I choose the right battery cycler for my project?

A5: Choose a battery cycler based on compatibility with battery chemistry, voltage/current range, testing capabilities needed, precision, software usability, safety features, and scalability matching project requirements and future needs.

Conclusion

A battery cycler is an indispensable instrument in the battery development and testing ecosystem, offering detailed insights into battery performance, health, and longevity through rigorous charge/discharge cycling. The integration of Electrochemical Impedance Spectroscopy (EIS) further elevates the analytical capabilities, enabling more comprehensive diagnostics. Science Gears battery cyclers stand out due to their precision, versatility, advanced features, and commitment to industry standards, making them a trusted choice for researchers and manufacturers seeking to innovate and ensure battery quality. For professional teams seeking to optimize their battery testing workflows, partnering with Science Gears offers expert support and cutting-edge technology tailored to industry-specific needs.
