An electrochemical cell is a device that either converts chemical energy into electrical energy (as in galvanic cells) or uses electrical energy to drive chemical reactions (as in electrolytic cells). This versatile technology forms the backbone of countless applications, from the batteries powering our everyday devices to advanced environmental monitoring systems and cutting-edge research instruments.
At its core, an electrochemical cell consists of two essential electrodes an anode where oxidation reactions occur, and a cathode where reduction reactions take place immersed in an electrolyte solution that enables ion transport. The interplay between these components creates a controlled environment where electron transfer reactions can be precisely manipulated and studied.
Understanding the Fundamental Components
Electrodes: The Sites of Transformation
The electrodes represent the heart of any electrochemical cell, serving as conductive surfaces where crucial redox reactions unfold. In research applications, electrodes are often made of inert materials such as platinum, gold, or glassy carbon to prevent unwanted reactions. In contrast, battery or galvanic cells usually use reactive electrode materials (like zinc, lithium, or copper) that actively participate in redox processes..
The anode functions as the electrode where oxidation occurs—the process whereby electrons are released from chemical species. In contrast, the cathode serves as the site for reduction reactions, where electrons are consumed by chemical species. This fundamental distinction drives the electron flow that characterizes electrochemical processes.
For advanced research applications, electrochemical cells often employ a three-electrode system consisting of a working electrode, counter electrode, and reference electrode. The working electrode is where the reaction of interest occurs, while the counter electrode completes the electrical circuit. The reference electrode provides a stable potential reference point, enabling precise measurements of electrode potentials.
Electrolytes: The Ion Transport Medium
The electrolyte solution plays a critical role in electrochemical cells by providing the necessary ionic conductivity for charge transfer. These solutions typically contain dissolved salts, acids, or bases that dissociate into ions, creating a conductive pathway between electrodes.
Aqueous electrolytes using water as the solvent are common for many applications, while non-aqueous systems employing organic solvents like acetonitrile or dimethylformamide extend the operational potential window for specialized studies. The choice of electrolyte significantly influences the cell's performance, potential range, and chemical compatibility.
Salt Bridges and Separators
In many electrochemical cell configurations, particularly galvanic cells, a salt bridge or separator membrane prevents direct mixing of different electrolyte solutions while maintaining electrical contact. This component typically contains a concentrated solution of an inert salt like potassium chloride, which allows ion migration to maintain charge neutrality during operation.
Types of Electrochemical Cells
Galvanic (Voltaic) Cells: Converting Chemical to Electrical Energy
Galvanic cells harness spontaneous redox reactions to generate electrical energy, making them the foundation of battery technology. In galvanic cells, the anode is negative and the cathode is positive; this polarity reverses in electrolytic cells, where an external power source drives the electron flow.
The spontaneous nature of galvanic cell reactions means they operate without external energy input, converting stored chemical energy directly into usable electrical power. Common examples include lithium-ion and alkaline batteries, as well as fuel cells, which continuously generate power from supplied reactants rather than stored reactants.
Electrolytic Cells: Driving Non-Spontaneous Reactions
Electrolytic cells operate on the opposite principle, using external electrical energy to drive non-spontaneous chemical reactions. In these systems, the anode becomes positively charged while the cathode carries a negative charge, reflecting the external power source driving the reactions.
These cells find extensive applications in electroplating, metal purification, electrorefining, and electrolysis processes. The ability to force otherwise unfavorable reactions enables the production of pure metals, decorative coatings, and valuable chemicals.
Primary vs. Secondary Cells
Primary cells represent single-use electrochemical systems where the chemical reactions are irreversible. Once the reactants are consumed, these cells cannot be recharged and must be replaced. Common examples include standard alkaline batteries and disposable lithium cells.
Secondary cells feature reversible electrochemical reactions, allowing them to be recharged by applying external electrical energy. These rechargeable systems include lead-acid car batteries, lithium-ion batteries, and nickel-cadmium cells that can undergo hundreds or thousands of charge-discharge cycles.
The Science Behind Electrochemical Cell Operation
Redox Reactions: The Driving Force
All electrochemical processes fundamentally rely on oxidation-reduction (redox) reactions where electrons are transferred between chemical species. Oxidation involves the loss of electrons, while reduction represents the gain of electrons. These complementary processes must occur simultaneously to maintain charge balance.
The tendency of different chemical species to undergo oxidation or reduction is quantified by their standard electrode potentials. These values, measured relative to the standard hydrogen electrode, predict which reactions will occur spontaneously and determine the theoretical voltage of electrochemical cells.
The Nernst Equation: Predicting Cell Behavior
The Nernst equation provides a mathematical framework for calculating electrochemical cell potentials under non-standard conditions. This fundamental relationship accounts for the effects of concentration, temperature, and pressure on cell performance:
E = E° - (RT/nF) ln Q
Where E represents the actual cell potential, E° is the standard cell potential, R is the gas constant, T is temperature, n is the number of electrons transferred, F is Faraday's constant, and Q is the reaction quotient. At standard temperature (25°C), this simplifies to:
E = E° - (0.0592/n) log Q
where log is base-10 (log₁₀) ; if the natural logarithm (ln) is used, the full (RT/nF) term must be retained.
This equation enables researchers and engineers to predict how changes in operating conditions will affect electrochemical cell performance.
Mass Transport and Kinetics
Electrochemical cell performance depends heavily on the transport of reactants to electrode surfaces and the removal of products. Diffusion, migration, and convection all contribute to mass transport; in most experiments a supporting electrolyte is added to suppress migration, leaving diffusion as the dominant transport (and often the rate-limiting) step.
The kinetics of electron transfer reactions at electrode surfaces also play a crucial role in determining cell efficiency. Factors such as electrode material, surface area, temperature, and electrolyte composition all influence reaction rates and overall performance.
Advanced Electrochemical Cell Configurations
Three-Electrode Systems for Research
Modern electrochemical research relies heavily on three-electrode configurations that provide precise control over experimental conditions. The working electrode serves as the site of interest, while the counter electrode ensures adequate current flow. The reference electrode maintains a stable potential reference, enabling accurate measurements of electrode behavior.
These systems often incorporate Luggin capillaries to position the reference electrode close to the working electrode, minimizing solution resistance effects. This configuration enhances measurement accuracy and enables sophisticated electrochemical techniques like cyclic voltammetry and electrochemical impedance spectroscopy.

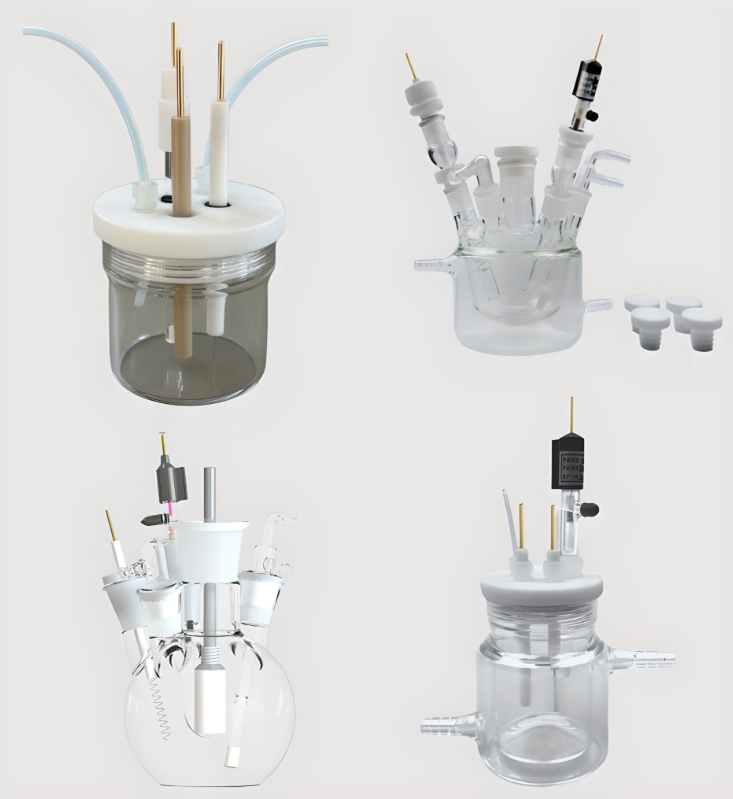

Specialized Cell Designs
Contemporary electrochemical research demands specialized cell designs tailored to specific applications. sealed electrochemical cell prevent contamination and evaporation for sensitive experiments, while jacketed cells enable precise temperature control. Multi-port configurations accommodate multiple electrodes and gas purging systems for advanced studies.
Gas Purging and Environmental Control
Many electrochemical experiments require inert atmospheres to prevent interference from atmospheric oxygen. Nitrogen or argon purging removes dissolved oxygen (and carbon dioxide in alkaline media) to prevent unwanted side reactions. This process, known as degassing, is essential for obtaining reliable results in fundamental electrochemical studies.
Applications Across Industries and Research
Energy Storage and Conversion
Electrochemical cells form the foundation of modern energy storage systems, from small consumer electronics to large-scale grid storage. Lithium-ion batteries dominate portable electronics due to their high energy density and long cycle life. Lead-acid batteries remain essential for automotive applications, while emerging technologies such as sodium-ion and solid-state batteries promise advantages like improved safety, stability, or sustainability, though large-scale commercial adoption is still emerging.
Fuel cells represent a clean energy conversion technology that directly converts chemical fuels into electricity. These systems offer higher efficiency than combustion engines and produce only water as a byproduct when using hydrogen fuel.
Environmental Monitoring and Remediation
Electrochemical sensors provide sensitive, selective detection of environmental pollutants via amperometric, potentiometric, or conductometric measurement modes. These devices can monitor water quality parameters, detect heavy metals, and measure atmospheric pollutants with high precision. Biosensors incorporating biological recognition elements enable detection of specific pathogens and toxins.
Electrochemical technologies also enable water treatment applications, including electrocoagulation, electroflocculation, and electrochemical oxidation for removing contaminants. These methods offer energy-efficient alternatives to traditional treatment processes.
Industrial Processes and Manufacturing
Electroplating uses electrolytic cells to deposit thin metal coatings for corrosion protection, decorative finishes, and functional properties. Electrorefining produces high-purity metals by selectively dissolving and redepositing metal ions.
Electrochemical machining and electropolishing enable precise material removal and surface finishing for manufacturing applications. These processes offer advantages in working with hard materials and achieving complex geometries.
Medical and Biotechnology Applications
Bioelectrochemical systems integrate living organisms with electrochemical cells for applications in wastewater treatment, biosensing, and energy generation. Microbial fuel cells use bacteria to convert organic waste into electricity, offering sustainable waste management solutions.
Electrochemical biosensors enable medical diagnostics through detection of glucose, cholesterol, and other biomarkers. These devices provide rapid, accurate measurements essential for health monitoring and disease management.
Research and Development
Electrochemical cells serve as essential tools for fundamental research in chemistry, materials science, and electrochemistry. They enable studies of reaction mechanisms, electrode kinetics, and material properties under controlled conditions.
Electrocatalysis research uses electrochemical cells to develop new catalysts for energy conversion reactions like hydrogen evolution, oxygen reduction, and carbon dioxide reduction. These studies drive advances in fuel cells, electrolyzers, and artificial photosynthesis systems.
Safety Considerations and Best Practices
Chemical Safety
Working with electrochemical cells requires careful attention to chemical hazards. Many electrolytes are corrosive or toxic, requiring appropriate personal protective equipment including safety goggles, lab coats, and chemical-resistant gloves.
Safety Data Sheets provide essential information about chemical hazards, handling procedures, and emergency response measures. Proper storage, labeling, and disposal of chemicals prevent accidents and environmental contamination.
Electrical Safety
Electrochemical experiments involve electrical circuits that can pose shock hazards. Proper grounding, insulation, and circuit protection prevent electrical accidents. Never handle electrodes or connections while power is applied to the system.
High-voltage electrochemical systems require additional precautions including isolation transformers, safety interlocks, and emergency shutoffs. Regular equipment inspection and maintenance ensure safe operation.
Environmental Controls
Adequate ventilation prevents accumulation of hazardous gases produced during electrochemical reactions. Fume hoods provide local exhaust ventilation for experiments generating toxic or flammable vapors.
Waste management procedures ensure proper disposal of spent electrolytes, electrode materials, and contaminated supplies. Many electrochemical wastes require special handling as hazardous materials.
Future Trends and Emerging Technologies
Advanced Materials Integration
Nanomaterials are revolutionizing electrochemical cell performance through enhanced surface areas, improved conductivity, and novel properties. Nanoparticle catalysts can improve reaction efficiency and reduce precious-metal usage, although maintaining catalyst stability and preventing nanoparticle aggregation remain active areas of research.
Two-dimensional materials like graphene and transition metal dichalcogenides offer unique electrochemical properties for next-generation devices. Composite materials combine multiple components to achieve optimized performance characteristics.
Smart and Self-Powered Systems
Self-powered electrochemical sensors harvest energy from their environment, enabling autonomous monitoring systems. These devices integrate energy harvesting with sensing capabilities for remote applications.
Wireless electrochemical systems eliminate the need for physical connections, enabling distributed monitoring networks. Advanced data processing and machine learning enhance sensor performance and reliability.
Sustainable Technologies
Green electrochemistry emphasizes environmentally friendly processes and materials. Bio-based electrolytes and recyclable electrode materials reduce environmental impact.
Circular economy principles drive development of electrochemical processes for recycling batteries, metals, and other materials. These technologies support sustainable resource management and waste reduction.
Integration with Digital Technologies
Artificial intelligence and machine learning optimize electrochemical cell design and operation. These tools accelerate materials discovery and process optimization.
Digital twins enable virtual modeling of electrochemical systems, reducing development time and costs. Internet of Things connectivity enables remote monitoring and control of electrochemical processes.
Electrochemical Cell Performance Optimization
Electrode Surface Engineering
Surface modification techniques enhance electrode performance through controlled porosity, functionalization, and nanostructuring. Porous electrodes provide increased surface area for enhanced reaction rates.
Electrode pretreatment procedures remove contaminants and optimize surface properties. Electrochemical cleaning and mechanical polishing ensure reproducible electrode behavior.
Electrolyte Optimization
Electrolyte composition significantly influences cell performance through ionic conductivity, potential window, and chemical stability. Supporting electrolytes maintain ionic strength while minimizing interference with reactions of interest.
Temperature control optimizes reaction kinetics and electrolyte properties. Jacketed cell designs enable precise temperature regulation for demanding applications.
System Integration
Electrochemical workstations provide precise control over experimental parameters including potential, current, and timing. Computer-controlled systems enable automated experiments and data collection.
In-situ monitoring techniques provide real-time information about cell behavior during operation. Spectroelectrochemistry combines electrochemical measurements with optical spectroscopy for enhanced understanding.
Electrochemical cells represent a cornerstone technology that continues to evolve and expand into new applications. From fundamental research to industrial processes, these versatile devices enable the controlled interconversion of chemical and electrical energy. As materials science advances and new challenges emerge in energy storage, environmental monitoring, and sustainable technologies, electrochemical cells will undoubtedly play an increasingly important role in addressing global needs. The integration of advanced materials, digital technologies, and sustainable practices promises exciting developments in this dynamic field, ensuring that electrochemical cells remain at the forefront of scientific and technological progress.
The sophisticated understanding of electrochemical principles, combined with innovative cell designs and advanced materials, positions this technology to meet the challenges of the 21st century. Whether powering the next generation of electric vehicles, enabling precise environmental monitoring, or driving breakthrough discoveries in fundamental research, electrochemical cells continue to demonstrate their versatility and importance across countless applications.
Frequently Asked Questions About Electrochemical Cells
What is an electrochemical cell?
An electrochemical cell is a device that converts chemical energy into electrical energy (galvanic cells) or uses electrical energy to drive chemical reactions (electrolytic cells). It comprises two electrodes—an anode (oxidation site) and a cathode (reduction site)—immersed in an electrolyte that enables ion transport.
What is the difference between galvanic and electrolytic cells?
Galvanic cells harness spontaneous redox reactions to generate electricity (e.g., batteries), with the anode negative and the cathode positive. Electrolytic cells use an external power source to drive non-spontaneous reactions (e.g., electroplating), featuring reversed electrode polarities.
What is a three-electrode system and why is it used?
A three-electrode system includes a working electrode (reaction site), a counter electrode (completes the circuit), and a reference electrode (stable potential reference). This setup allows precise control and accurate measurement of electrode potentials in research applications.
What is the Nernst equation and what does it predict?
The Nernst equation, E=E°−RTnFlnQ, calculates the actual cell potential under non-standard conditions by accounting for concentration, temperature, and pressure. It enables prediction of how operating conditions influence electrochemical performance.
What safety precautions are necessary when working with electrochemical cells?
Essential safety measures include wearing PPE (goggles, lab coat, gloves), ensuring proper electrical insulation and grounding, using adequate ventilation or a fume hood to avoid gas buildup, and following chemical Storage Data Sheets for handling and disposal.
