Platinum Electrode Clamp / Holder

Precision electrode holding for reliable electrochemistry

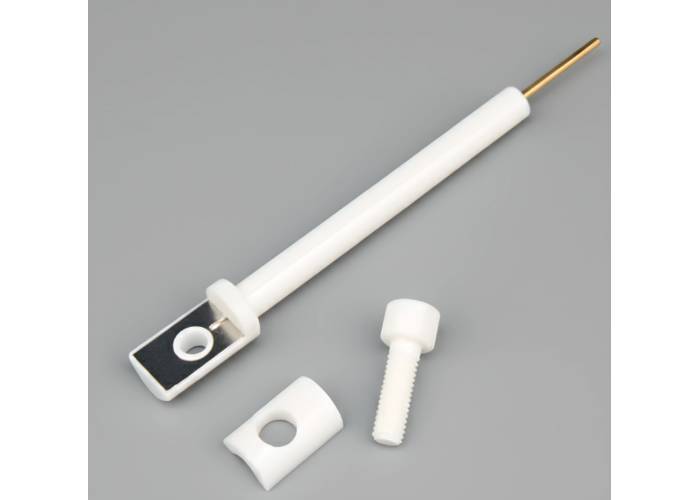

The Platinum Electrode Clamp is a research-grade holder designed to provide a stable electrical connection between a potentiostat lead and a conductive sample used as the working electrode. In a typical three-electrode configuration, the clamp secures the sample mechanically while the conductive platinum contact transfers current efficiently to the electrode. The insulating outer body helps isolate the electrical connection from the electrolyte, supporting reliable and reproducible electrochemical measurements in laboratory environments. Comparable holder designs are widely used in electrochemistry, battery testing, fuel cell research, electrolyser studies, and photoelectrochemical experiments.

Principle of operation and design

This style of electrode clamp is particularly useful when the researcher needs to hold sheets, foils, meshes, rods, wires, coated substrates, conductive glass, or other flat and shaped conductive materials as the working electrode. Commercially available comparable designs commonly use a platinum sheet or platinum contact element together with an insulating PTFE or PEEK body. Standard rod-style formats in the market are often around 6 mm in diameter and 60 mm in length, while plate-style holder versions are also available in formats such as 10 × 15 mm, 10 × 15 mm and 5 × 5 mm for electrochemical and photoelectrochemical studies.

Key features and customisation options

• Stable and corrosion-resistant platinum electrical contact
• Insulating body options such as PTFE or PEEK
• Suitable for aqueous and many non-aqueous electrochemical environments
• Compatible with potentiostats, electrochemical cells, and selected photoelectrochemical setups
• Suitable for conductive glass, carbon paper, carbon cloth, thin films, metal sheets, metal mesh, nickel foam, graphene-based materials, and self-prepared coated electrodes
• Customisable clamp dimensions, immersion length, exposed area, and connector style
• Custom electrode clamp sizes available to suit different sample formats
• Material customisation available on request, including platinum, glassy carbon (GC), gold (Au), silver (Ag), copper (Cu), nickel (Ni), stainless steel, titanium, and other conductive materials

Comparable supplier designs specifically support platinum, gold, glassy carbon, titanium, stainless steel, copper, conductive glass, carbon materials, nickel foam, mesh, foil, rod, and wire-style electrodes.

Typical applications

Typical applications include cyclic voltammetry, chronoamperometry, electrocatalysis, corrosion testing, battery materials research, fuel cells, water splitting, electrolysers, sensors, and photoelectrochemistry. This accessory can be paired with related ScienceGears products such as potentiostats, reference electrodes, counter electrodes, electrochemical cells, Raman spectroelectrochemistry systems, and battery testing platforms for a complete research workflow.

Why choose ScienceGears

ScienceGears supplies practical, research-focused electrochemistry solutions for Australia and New Zealand. In addition to standard platinum clamp configurations, we can support custom electrode clamp geometry, sample size, material selection, and application-specific integration. This gives researchers greater flexibility when working with conventional electrodes, coated substrates, advanced catalysts, thin films, and custom-made specimens.
