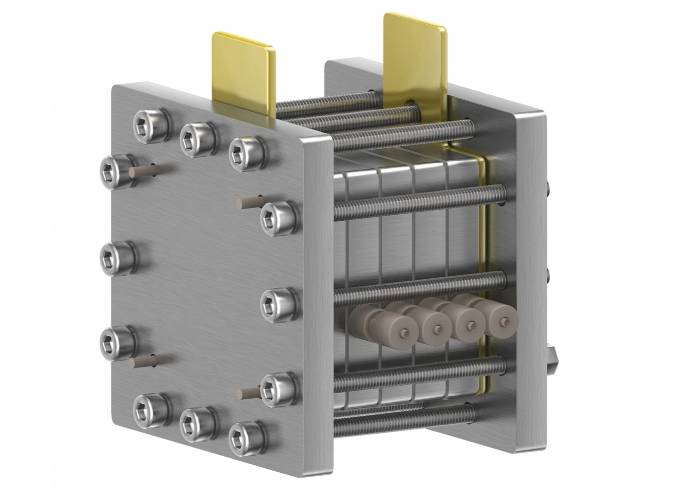

Membrane electrolysis cell stack electrochemical cell
Membrane electrolysis cell stack electrochemical cell
Membrane electrolysis cell stack electrochemical cell
Model: MEA-05
- This electrolytic cell can achieve higher voltage and power performance by stacking individual flow plates, it can be used for research-oriented testing of electrochemical processes such as carbon dioxide reduction, water electrolysis and organic electromechanical synthesis.
- The channel plate of the cell body is made of high-purity titanium material, the other different materials, such as high-purity nickel and PEEK, can be customised according to customer needs.
- The runner board adopts hidden channels, it supports series connection, parallel connection, or series + parallel connection combinations.
- The MEA cell plate is equipped with heating and temperature measurement holes for electrochemical testing under temperature control conditions.
- The collector plate is made of gold-plated copper plate, which has strong corrosion resistance.
- The available reactor type: serpentine channel, parallel channel or leaf vein channel, the other customised channel types are also acceptable, such as spiral, mesh, comb, etc.
Technical Specifications
Precision engineering for accurate measurements
Flow channel | 10*10mm; 20*20mm; 30*30mm; 50*50mm, or other customized flow field size. |
---|---|
Cell material | High-purity titanium, or High-purity nickel plate. |
Terminal material | Gold-plated Copper |
