Online FT-IR Analyzer
Unaffected by solid components, suitable for the detection of liquid components in turbid liquid systems
• Versatile Application:
① Unaffected by the color of the system , effective detection in various black and dark-colored systems.
② Unaffected by solid components , suitable for detecting liquid components in stirring liquid systems.
③ Applicable to high-temperature , high-pressure , strong acid , alkali, and highly corrosive systems.
• Fast: Obtain data within seconds.
• Intuitive: Real-time display of trends in raw materials and products.
• Powerful function: Simultaneously monitor multiple components and their concentration changes.
• Intelligent: Smart algorithms automatically analyze spectra.

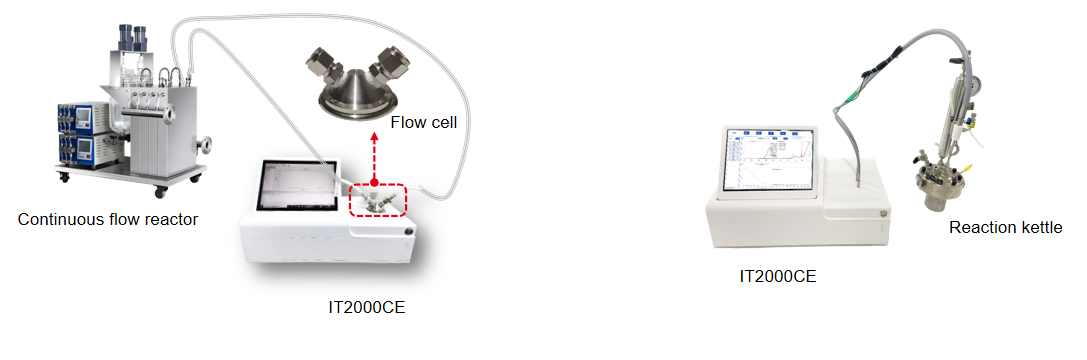

IT2000CE can connect a bypass to the flow cell in the continuous flow reactor for online monitoring. It is suitable for continuous flow or tubular reactors. It can also use an immersion probe to penetrate deep into the liquid surface of the reaction system to monitor each reaction component, more suitable for kettle batch reactors.
Technical Specifications
Precision engineering for accurate measurements
|
Parameter |
Flow cell | Immersion probe |
| Design/Appearance |  |
 |
|
Dimension |
51 cm（width） × 30 cm（depth） × 25 cm（height） |
|
|
Weight |
≤15 kg |
|
|
Spectral resolution |
2 cm-1 , 4 cm-1 , 8 cm-1 optional |
|
| Sample type | Strong acid, strong alkali, strong corrosive | |
|
Screen |
10.5-inch capacitive touch screen, supports multi-touch and multi-angle folding fixation | |
|
Spectral range |
500-5000 cm-1 | 600-1800 cm-1 |
| Temperature withstand | -50 ~ 100 ℃ | -150 ~ 230 ℃ |
| Pressure withstand | 2 MPa | 10 MPa |
| Fiber length | - | 1.5 m, 3 m optional |
| Dimensional interface | Φ6, 1/8, 1/4 optional (hard pipes use ferrule joints, hoses use pagoda heads) | Length 300 mm, diameter 6.35 mm (Hastelloy) |
| Length 150 mm, diameter 6.35 mm (PEEK) | ||
| Material | 316 stainless steel, 304 stainless steel,Hastelloy C276, Monel alloy, TA2 optional | Hastelloy, PEEK optional |
