Short Description

• JINSP RS1500DI can perform 100% package-by-package inspection of both raw materials and packaging materials. It can quickly identify raw materials in warehouses, material preparation rooms, production workshops, etc., helping pharmaceutical companies to quickly release materials.
• RS1500DI uses a unique 1064nm laser with a broad detection range, especially for amino acids, coenzymes, cellulose and other raw materials with strong fluorescent signals. Furthermore, RS1500DI is compliant with relevant regulations such as FDA 21 CFR Part 11 and GMP.

Technical characteristics

• Quick response: identification can be completed within a few seconds
• Response quickly: the identification can be completed within a few seconds
• Non-destructive identification: direct detection through glass, woven bags, plastic and other packaging
• Compact and lightweight: it can be moved flexibly in warehouses, material preparation rooms, and production facilities, etc.
• Real-time sampling: no need for sampling, simple and safe
• Identification accuracy: an advanced machine learning algorithm supports accurate recognition with strong specificity

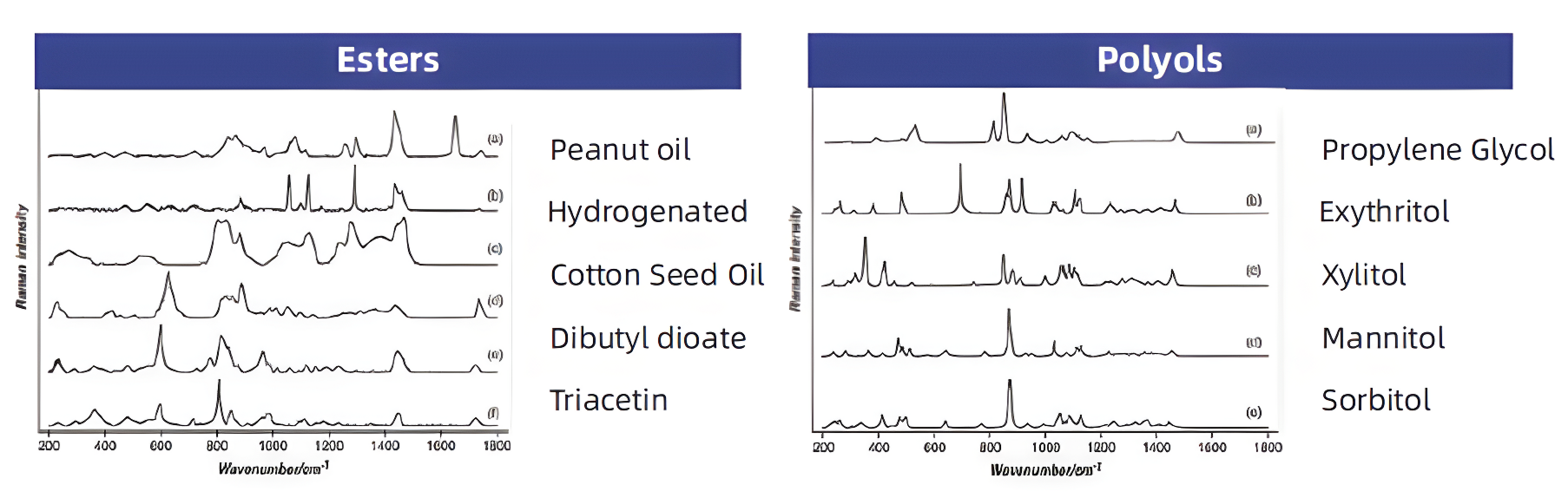

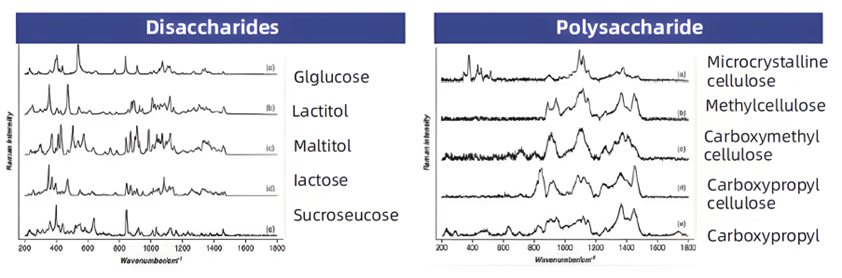

Wide Detection Range

• Chemical raw materials: aspirin, acetaminophen, folic acid, nicotinamide, etc.
• Pharmaceutical excipients: salts, alkalis, sugars, esters, alcohols, phenols, etc.
• Packaging materials: polyethylene, polypropylene, polycarbonate, ethylene-vinyl acetate copolymer, etc.
• Compared with ordinary 785nm Raman, it has stronger detection ability
• Biochemical raw materials: amino acids and their derivatives, enzymes and coenzymes, proteins, etc.
• Pigment excipients: carmine, carotene, curcumin, chlorophyll, etc.
• Other polymer excipients: gelatin, microcrystalline cellulose, etc.

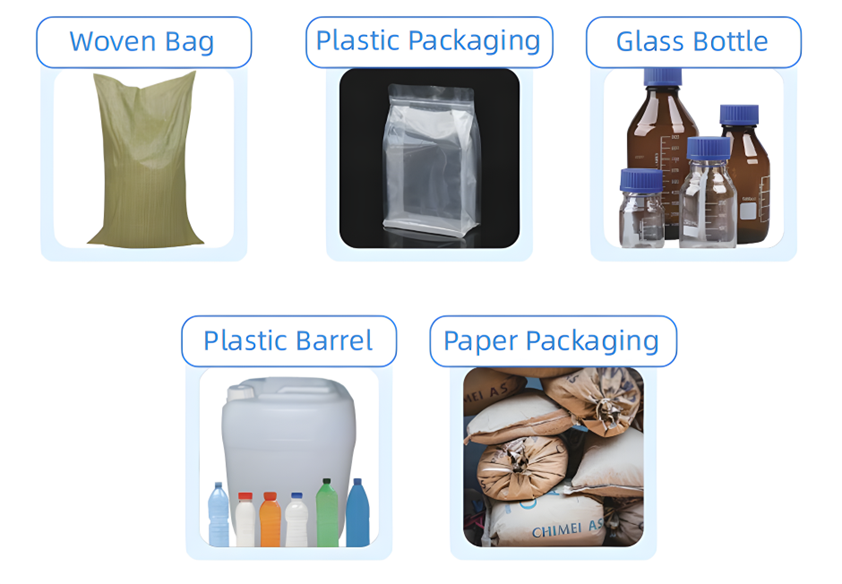

No Sampling Required

It can directly detect through woven bags, plastic, glass, paper packaging, and other types of packaging.

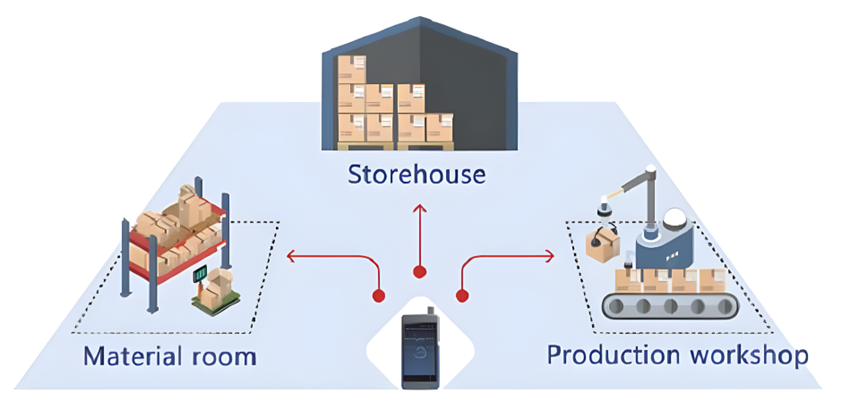

Wide Application Area

Compact and light weight, a single device can fulfill the requirements of multiple environments, including warehouses, material preparation rooms, and production workshops

Related legislation

GMP2015. Article 110 of chapter 6: Corresponding operating procedures shall be formulated, and appropriate measures such as checking or inspection shall be taken to confirm that the raw and auxiliary materials in each package are correct.

Chinese Pharmacopoeia 2020. Chapter 0421 Raman spectroscopy: Raman spectroscopy can provide information on functional groups in sample molecules, so it can be used for identification tests and structural analysis.
