Raman Probe & Flow Cell Options
Short Description
- Compatible testing accessories for liquid online Raman analysers and benchtop Raman spectrometers.
Technical highlights
Optical probe
- High collection efficiency: special optical design
- Withstands high and low temperatures, high-pressure, harsh and extreme reaction conditions
- Flexible customisation: The interface, length, and material can be customised
Flow cell
- Multiple materials available
- Special optical design ensures maximum collection efficiency
- Different interface specifications can adapt to pipelines of different specifications.
- Suitable for high temperature, high pressure, strong acid and strong alkali systems, with good sealing and convenient connection
Raman Probe
Off-line probe

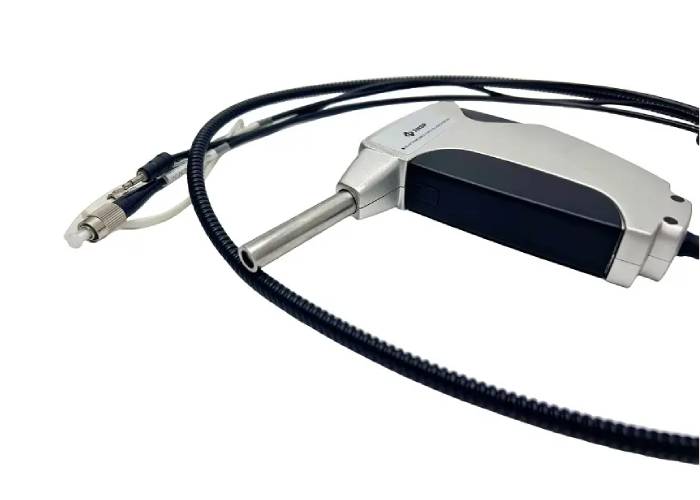

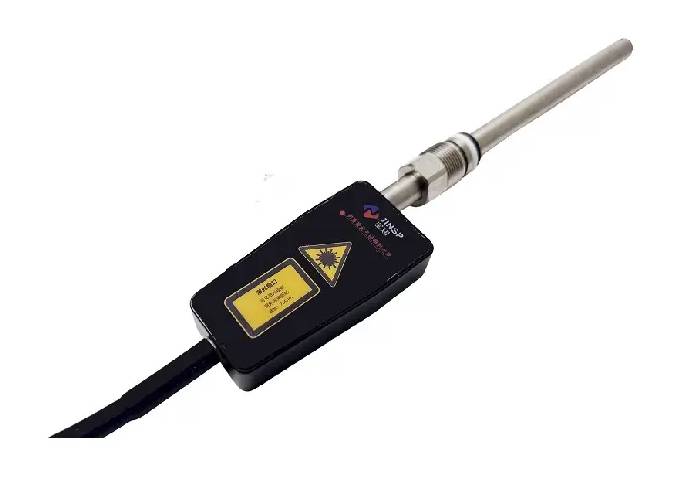

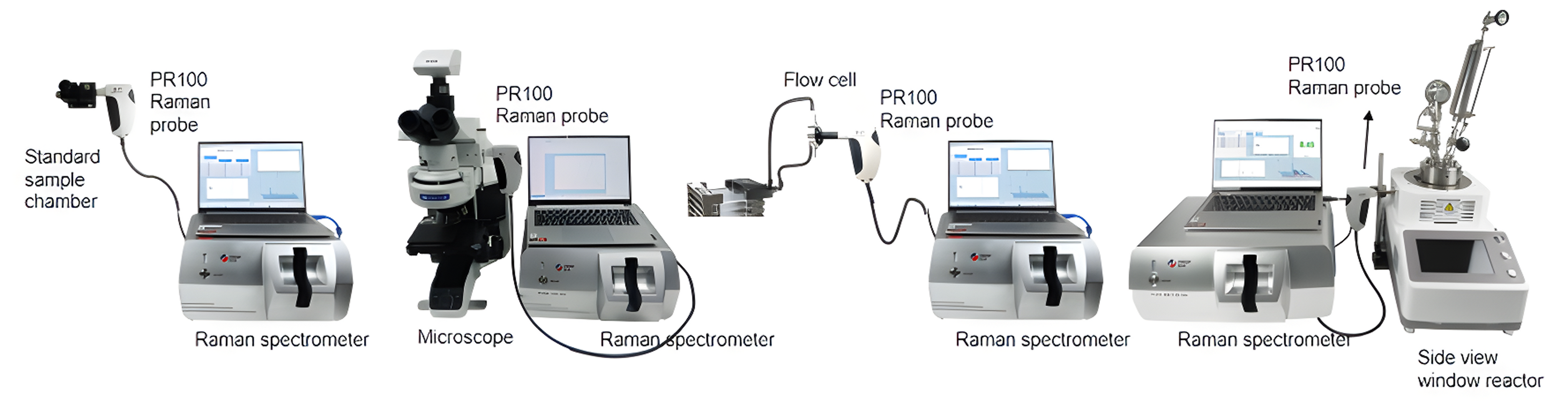

PR100 Raman probe is a conventional laboratory Raman probe for off-line analysis, which can be used for three excitation wavelengths: 532 nm, 785 nm, and 1064 nm. The probe is compact and lightweight, suitable for routine measurements of liquids and solids in conjunction with a sample chamber. It can also be used with a microscope for Raman micro spectroscopy. PR100 can be combined with a flow cell and a side-view reactor for online reaction monitoring.
Corrosion-resistant / Pressure-resistant probe

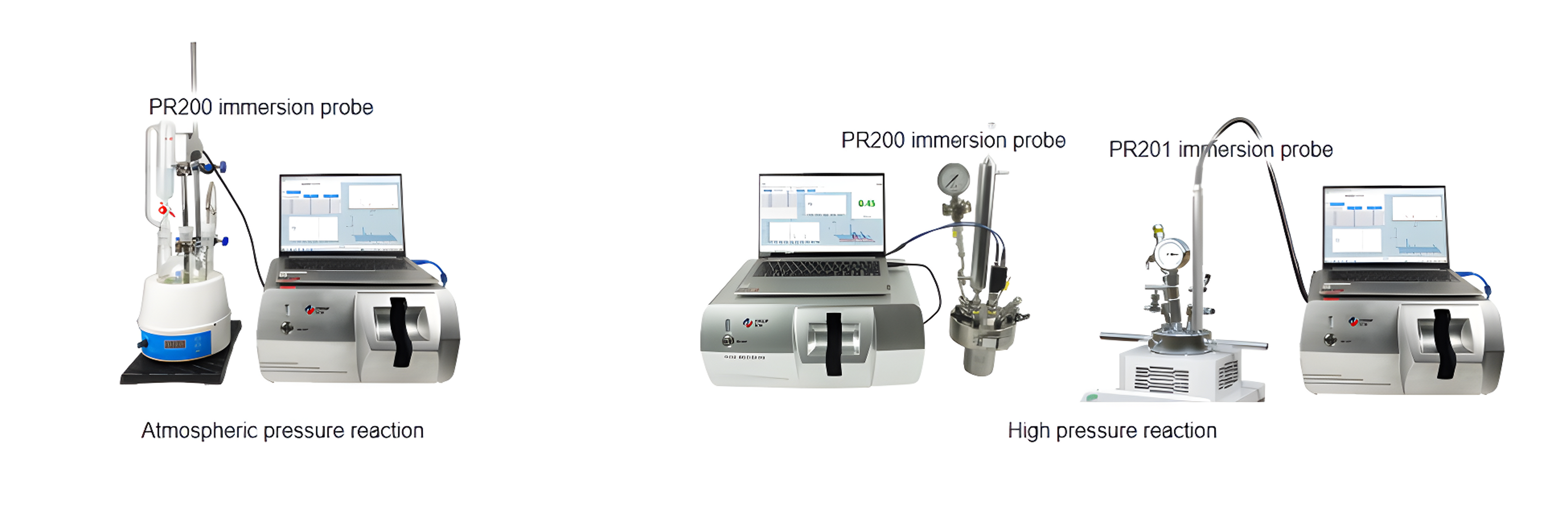

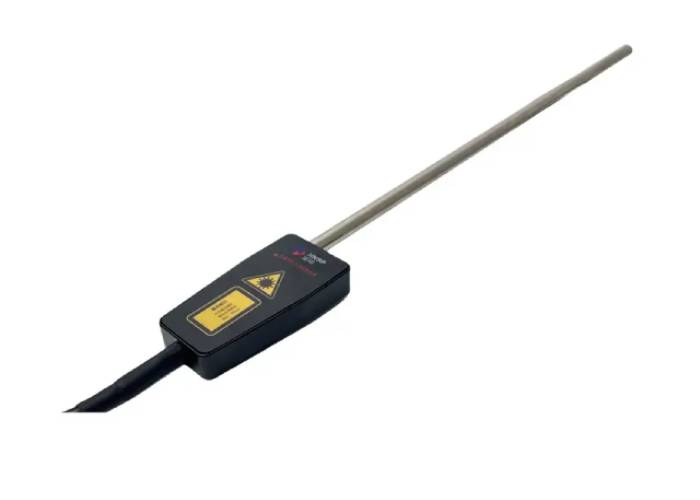

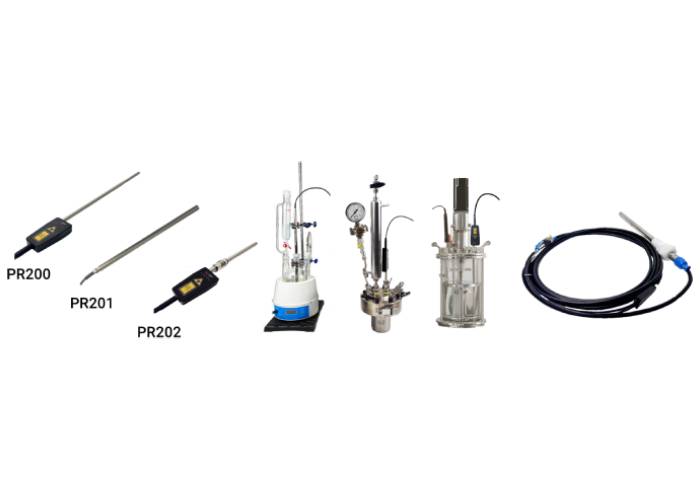

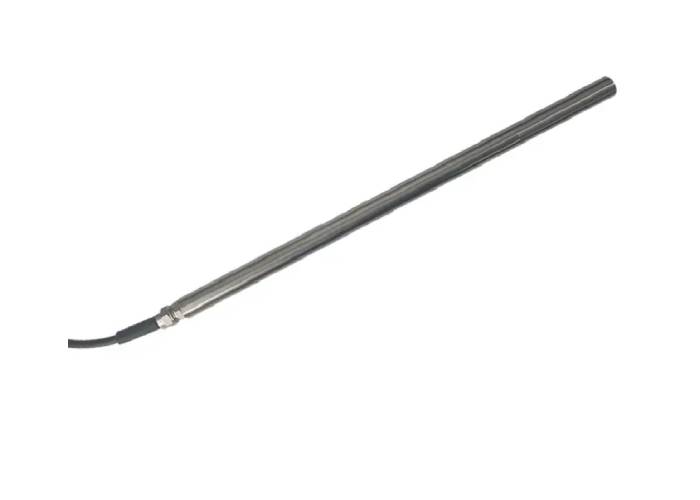

The PR200/PR201/PR202 immersion probes are suitable for monitoring small-scale reactions in the laboratory. They can be directly inserted into reaction flasks or laboratory-scale reactors for in situ monitoring of the reaction process. An optimised version for detecting suspension/stirred solutions is available, effectively reducing interference in liquid signal detection.
The PR200/PR201 probe tubes are available in various materials, particularly suitable for monitoring chemical reaction systems under extreme conditions, difficult sampling, or unstable sample conditions. PR200 is compatible with small interfaces, while PR201 is suitable for medium-sized interfaces.
Biological probe
PR202 is suitable for online monitoring of various components in bio-fermentation reactors, and the probe part can be detached for high-temperature sterilisation treatment. The probe tube interface is PG13.5.
Flow Cell

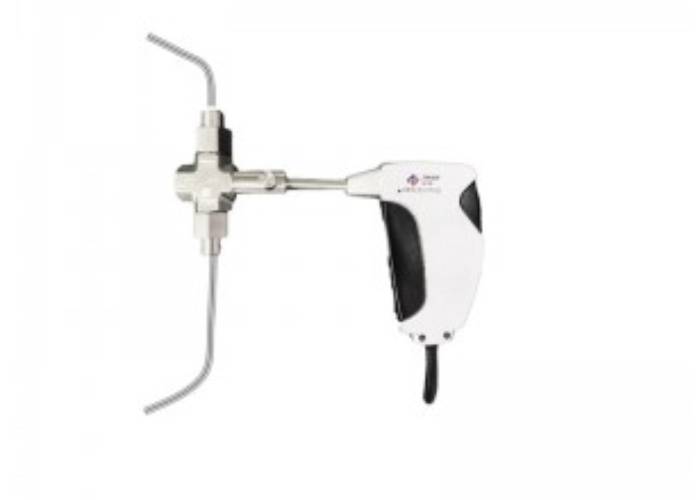

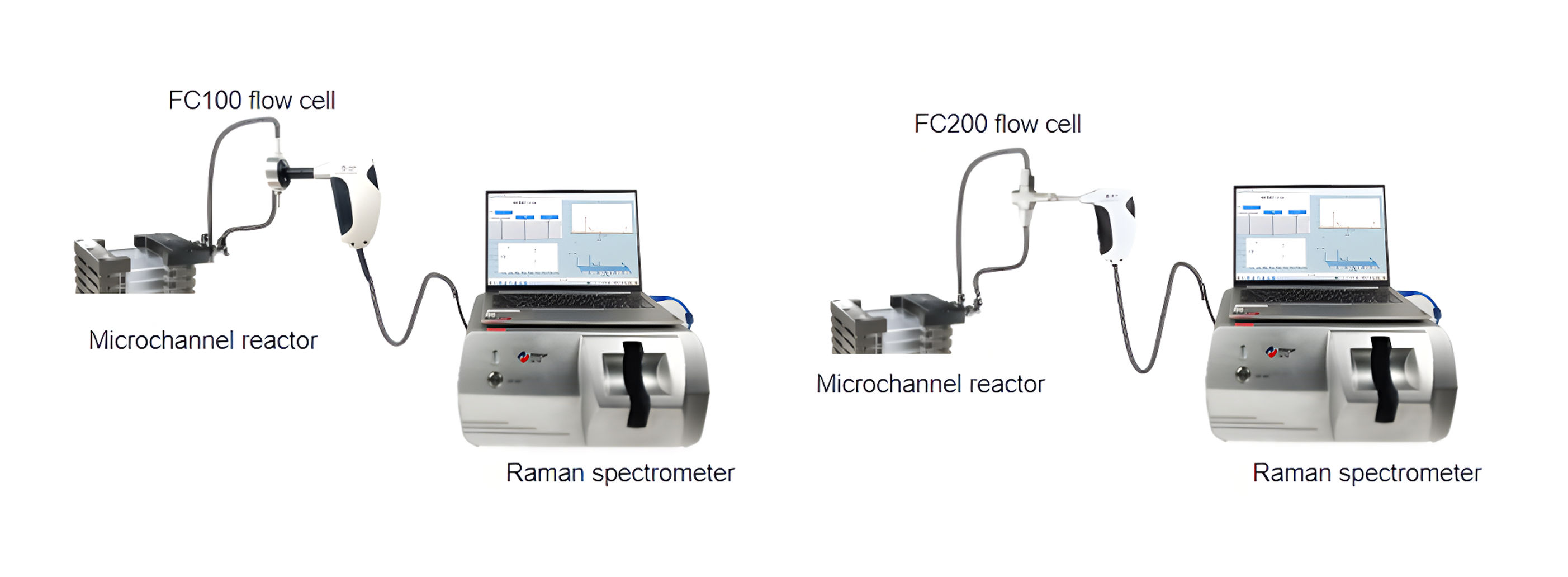

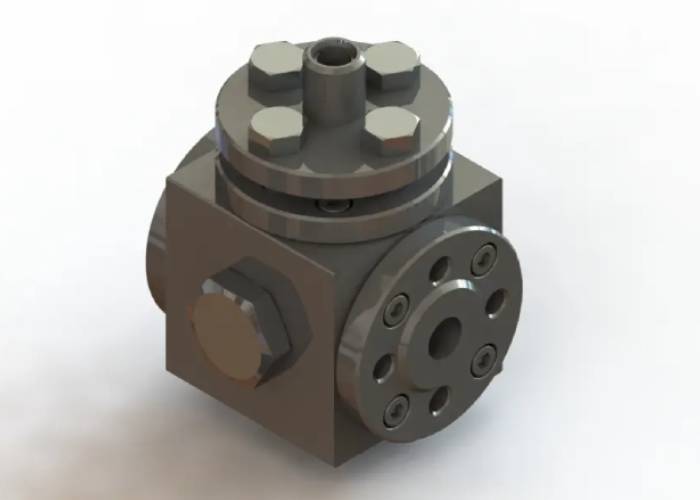

- The FC100/FC200 flow cells can be integrated with the PR100 Raman probe and connected to the reaction pipeline.
- When liquid material flows through the flow cell, the collection of spectral signals can be completed in a few seconds. This is suitable for continuous flow reaction systems or kettle-type reactions with automated samplers, enabling online monitoring.
Technical Specifications
Precision engineering for accurate measurements
|
|
PR100 optical probe |
PR200 immersion probe |
PR201 immersion probe |
PR202 immersion probe |

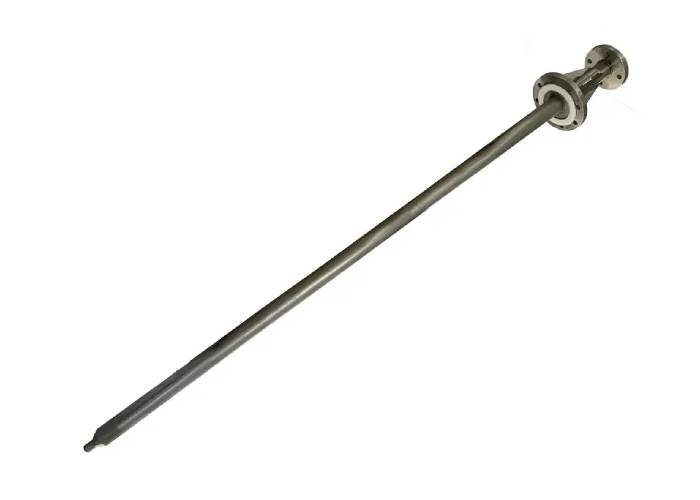

PR300 industrial immersion probe |
|
Probe tube material |
304 stainless steel |
C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional |
C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional |
316L stainless steel, resistant to SIP/CIP sterilization |
C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, or TA2 optional |
|
Outer diameter |
10 mm |
10 mm |
16 mm |
12 mm |
60 mm (contact Sales for other options) |
|
Probe tube length |
80 mm |
350 mm (contact Sales for other customized length of 100 mm ~ 350 mm) |
270 mm (contact Sales for other customized length of 100 mm ~ 1000 mm) |
120 mm (contact Sales for other customized length of 120 mm ~ 320 mm) |
1.9 m (contact Sales for other customized length of 1 m ~ 3 m) |
|
Spectral range |
200 ~ 3900 cm-1 (532 nm or 785 nm excitation wavelength) or 230 ~ 3100 cm-1 (1064 nm excitation wavelength) |
||||
|
Sample type |
Any sample type |
L (clear liquid) or S (opaque or turbid liquid) or C (slurries or semi-solids) |
|||
|
Fiber optic cable |
1.3 m PVC jacketed as standard, 3 m or 5 m length are optional |
5 m as standard ,10 m, 50 m or 100 m length are optional; PVC jacket as standard, TPU or silica gel jacket are optional |
50 m (contact Sales for other options) |
||
|
Temperature range |
0 ~ 100 ºC |
–40 ~ 200 ºC |
–40 ~ 150 ºC |
–30 ~ 200 ºC |
–60 ~ 200 ºC |
|
Maximum pressure |
ambient condition |
30 MPa |
30 MPa |
1 MPa |
30 MPa |
|
Corrosion resistance |
Not resistant to corrosive liquid |
Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic solution |
Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic solution |
pH range: 1-14 |
Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic solution |
|
Optical fiber configuration |
100 μm excitation fiber, 200 μm collection fiber, N.A. 0.22 |
||||
|
Filter efficiency |
OD6 (contact Sales for other options) |
||||
|
Connection interface |
FC and SMA |
||||
|

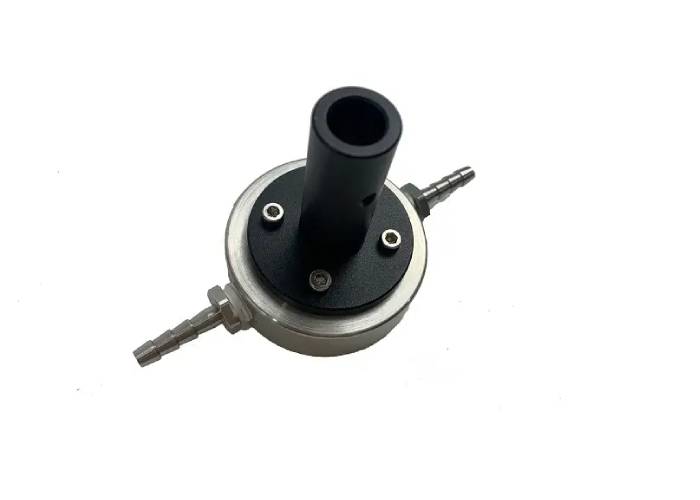

FC100 flow cell |
FC200 flow cell |
FC300 industrial flow cell |
|
|
Application |
FC100 is a small-sized flow cell for online reaction monitoring in laboratory. it can be connected to a microchannel reactor via a sampling loop. |
FC100 is a medium-sized flow cell for online reaction monitoring in laboratory. It can be connected to a flow reactor via a sampling loop. |
FC300 can be used for online reaction monitoring in large-scale production. Flanged connection mode makes it applicable to pipeline reactors or continuous flow reactors. |
|
Inner diameter of flow |
3 mm (contact Sales for other options) |
8 mm (contact Sales for other options) |
15 mm (contact Sales for other options) |
|
Material |
C276 alloy, 304 stainless steel, 316L stainless steel, Monel alloy, TA2, or PTFE optional |
||
|
Interface |
Φ6, 1/8’’, 1/4‘’, or 1/16’’ optional |
Φ6, Φ8, Φ10, 1/8‘’, or 1/4‘’ optional |
DN10, DN15, or DN20 optional |
|
tube fitting (steel tubing ) or barbed fittings (hose) optional |
|||
|
Temperature range |
–40 ~ 200 ºC |
–40 ~ 200 ºC |
–60 ~ 300 ºC |
|
Maximum pressure |
1 MPa |
4 MPa |
4 MPa |
|
Anti-corrosion |
Resistant to strong acid/alkali, hydrofluoric acid (HF), and organic solution |
||
