ECSens BIPOT Electrochemical Sensing Interface

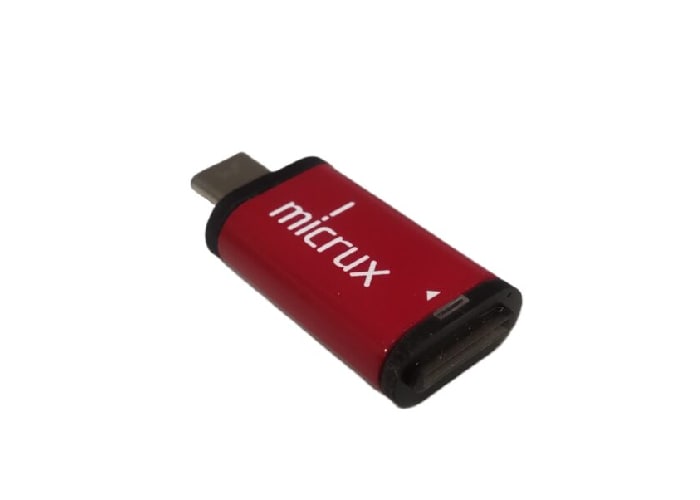

MicruX ECSens is an ultra-compact and affordable Bipotentiostat, ideal for starting electrochemical studies with the most common electroanalytical techniques, enabling in-situ voltammetric and amperometric analyses.

• Dimensions: 39 x 17 x 9 mm (L x W x H).
• USB-powered / interfacing.
• Control PC software – MicruX EC Manager LITE.
• Potential range: ± 1.5 V
• Current ranges: 0.25 µA to 12.5 mA (max current: ± 5 mA).
• Operating modes: bipotentiostat / potentiostat (multi-channel mode available)
• Compatible with screen-printed electrodes (SPE).

MicruX ECSens is provided with all necessary accessories and software for interfacing with the computer and sensors.

MicruX ECSens includes the most common electroanalytical techniques for voltammetric and amperometric analysis.

AVAILABLE ELECTROCHEMICAL TECHNIQUES

---

Voltammetry Cyclic Voltammetry (CV) Linear Sweep Voltammetry (LSV) Differential Pulse Voltammetry (DPV) Normal Pulse Voltammetry (NPV) Square Wave Voltammetry (SWV)

Amperometry Amperometric Detection (AD) Multi-Step Chronoamperometry (CA) Potentiometry Potentiometric Stripping Analysis (PSA)

Voltammetric and amperometric methods can be used in BIPOT mode.

PC SOFTWARE AND ANDROID APP

---

MicruX EC Manager Lite is the basic graphical user interface for controlling the device from a PC, enabling real-time plotting, storage, and analysis of results. Additionally, the software allows control of multiple devices from the same screen simultaneously, setting up parallel replicates and spools for multiplexed analysis.

MicruX ECSens can also be USB-interfaced with an Android-based smartphone and controlled via the ECSens Smart App, enabling true in-situ analysis. You can try the app by downloading it from Google Play.
