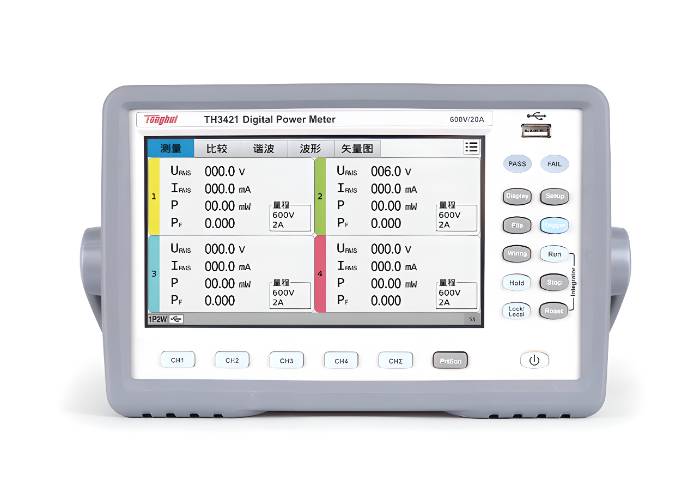

TH3421/TH3422 Series Four-Channel Digital Power Meter

TH3421/TH3422 Series Four-Channel Digital Power Meter

The TH3421/TH3422 Series is a four-channel digital power meter designed for multi-channel electrical power measurement and harmonic analysis. It is suitable for laboratories that need to measure several voltage and current paths simultaneously, such as input/output power, multi-output devices, three-phase systems or complex power-electronics workflows.

The manufacturer lists the TH3421/TH3422 Series with 0.15 percent basic accuracy, voltage range from 5 V to 600 V, current range from 10 uA to 20 A, power range from 5 mW to 12 kW and frequency range from 45 Hz to 420 Hz. The series is identified as a four-channel digital power meter with harmonic analysis capability.

Key Features

• Four-channel digital power meter platform.
• Harmonic analysis capability.
• Basic accuracy: 0.15 percent.
• Voltage measurement range: 5 V to 600 V.
• Current measurement range: 10 uA to 20 A.
• Power measurement range: 5 mW to 12 kW.
• Frequency range: 45 Hz to 420 Hz.
• Suitable for multi-channel and synchronised measurement workflows.

Typical Applications

The TH3421/TH3422 Series is suitable for power supplies, chargers, converters, appliances, lighting systems, three-phase devices, electric motors, inverters and energy-efficiency testing. It is useful where researchers need to compare input and output behaviour or analyse power quality across multiple channels.

Compatibility and Integration

The TH3421/TH3422 Series can be integrated with programmable AC sources, programmable DC supplies, electronic loads, bidirectional DC systems and ScienceGears automated test benches. It supports power analysis workflows where harmonic behaviour and multi-channel measurement are important.

Why Choose ScienceGears

ScienceGears can help Australian and New Zealand customers decide whether a four-channel power meter is suitable or whether a higher-accuracy multi-channel analyser is required. We assist with channel count, current range, harmonic analysis and system integration planning.
