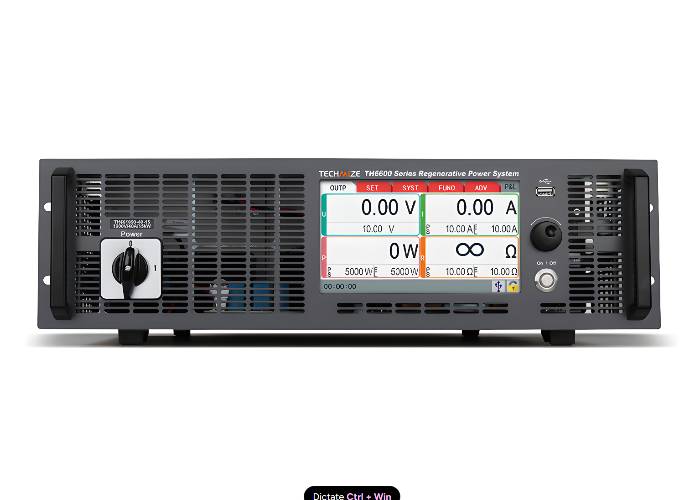

TH6600P Series High-Power Programmable DC Power Supply

TH6600P Series High-Power Programmable DC Power Supply

The TH6600P Series is a high-power programmable DC power supply designed for kilowatt-level DC sourcing in battery, renewable-energy, power electronics and industrial validation workflows. It is suitable for laboratories that require controlled voltage and current output beyond standard benchtop DC power supply capability.

The series supports manufacturer-listed rated voltage up to 1500 V, rated current up to 360 A and power classes of 5 kW, 10 kW and 15 kW. It uses a 3U high-density chassis design and supports master-slave parallel operation for larger power requirements. The system supports CV, CC, CR and CP power modes with automatic conversion, making it useful for controlled DC source testing across a wide operating range.

Key Features

• High-power programmable DC source platform.
• Rated voltage range across the series: 0-1500 V.
• Rated current up to 360 A depending on model.
• Rated power classes: 5 kW, 10 kW and 15 kW.
• Wide AC input range: 360-528 VAC.
• Master-slave parallel expansion for higher-power systems.
• Built-in function generator with sine, triangle, arbitrary and custom waveforms.
• Hardware protection including OVP, OCP and OPP.
• SCPI and MODBUS protocol support.

Typical Applications

The TH6600P Series is suitable for battery module charging, DC bus testing, inverter and converter validation, solar photovoltaic simulation, electric vehicle component studies, LED testing, clean-energy research and automated production-line validation.

Compatibility and Integration

The TH6600P Series can be integrated with DC electronic loads, regenerative electronic loads, power meters, battery test systems, fuel-cell test stations and custom ScienceGears high-power test fixtures. ScienceGears can help Australian and New Zealand laboratories assess voltage, current, power, wiring, cooling and safety requirements before system selection.
