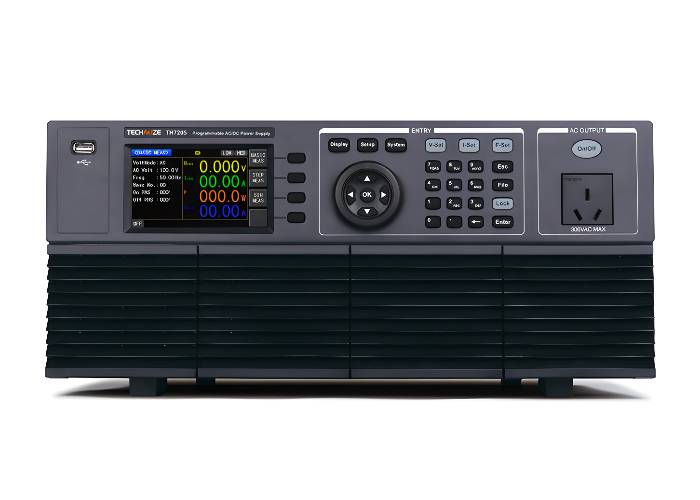

TH7200 Series Linear Programmable AC/DC Power Supply

TH7200 Series Linear Programmable AC/DC Power Supply

The TH7200 Series is a linear programmable AC/DC power supply designed for laboratories that need both AC and DC output capability in one platform. It supports controlled AC output for mains simulation and controlled DC output for broader device validation, making it useful for power electronics, product development and quality-control workflows.

The series includes TH7205 and TH7210 models. In AC mode, the manufacturer lists rated output power of 500 VA and 1000 VA, output voltage up to 300 V and frequency range from 1 Hz to 1000 Hz. In DC mode, the series supports output voltage up to 424 V with rated power of 350 W and 700 W depending on model.

Key Features

• Linear programmable AC/DC source platform.
• AC output power classes: 500 VA and 1000 VA.
• AC output voltage range up to 300 V.
• AC output frequency range: 1 Hz to 1000 Hz.
• DC output voltage range up to 424 V.
• DC output power classes: 350 W and 700 W.
• Supports AC, DC and AC/DC output modes.
• Built-in waveform functions including sine, square, triangle, clip, glitch, trap and dimmer.
• Custom waveform import via CSV file.
• RS232, USB Device, USB Host and LAN interfaces.
• SCPI and MODBUS protocol support.

Typical Applications

The TH7200 Series is suitable for motors and transformers, lighting systems, electronic product design, network communication devices, audio and video equipment, monitoring equipment, power specification simulation and EMC-related engineering workflows. It is useful when one instrument must simulate both AC and DC input conditions.

Compatibility and Integration

The TH7200 Series can be paired with power meters, electronic loads, oscilloscopes, data loggers and automated test systems. Within ScienceGears workflows, it can support power electronics, energy research, product validation and teaching laboratories requiring flexible AC/DC source capability.

Why Choose ScienceGears

ScienceGears helps Australian and New Zealand customers select the right AC/DC source based on voltage, power rating, frequency range, waveform needs, measurement requirements and communication interface. We can assist with integration into R&D, quality-control and automated testing environments.
