Multi8x All-In-One Platform

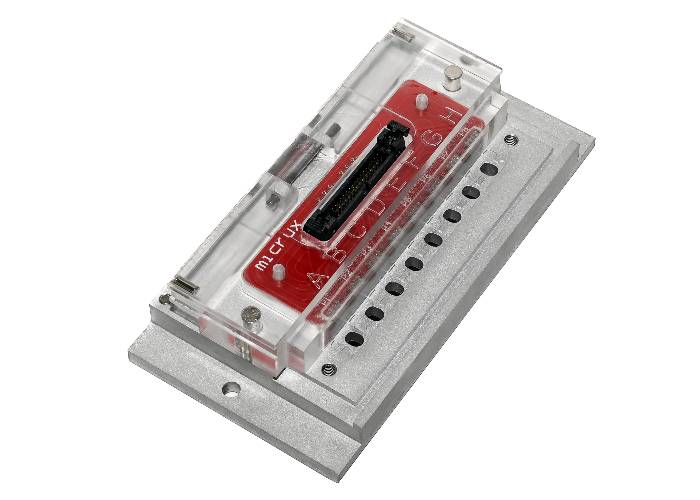

The Multi8x All-In-One (AIO) platform offers a multiplexing interface with interchangeable movable add-ons. The Multi8x AIO platform enables the use of up to 8 thin-film (micro)electrodes in either static (Drop/Batch cell) or dynamic (Flow cell) mode, enabling a multiplexed detection system for various analytical applications.
- User-friendly and robust interface for connecting thin-film electrodes to instrumentation.
- Supports the use of up to 8 standard thin-film electrodes, either individually or simultaneously.
- Allows for sample volumes of 1 to 10 µL per cell
- Includes basic assembly parts (with screws) for various add-ons.
- Quick and easy replacement of electrodes and add-ons.
The AIO Multi8x platform includes a miniUSB box, an IDC connector, and universal cables for individual connection of the 8 cells with any commercial (multi)potentiostat. The cables are available with two terminal options to better meet the requirements of any instrumentation:
- 2-mm female banana plugs (includes male adapter).
- 2-mm male banana plugs (includes crocodile clips).
The base of the Multi8x AIO platform can be purchased separately without any add-on (ED-MULTI8x-AIO-CELL), functioning similarly to the Drop-cell interface in a multiplexed way. Alternativetly, it can be purchased with one (ED-MULTI8x-AIO-CELL-1x) or two (ED-MULTI8x-AIO-CELL-2x) add-ons from the available options. Additional multi8x add-ons can also be purchased separately. Multi8x Add-ons are available in different materials: transparent PMMA (standard) or solvent-resistant PEEK (upon request). Select the option that best suits the needs of your experiments.
AVAILABLE MULTI8x AIO ADD-ONS
| SKU : ED-ADD-ON-8x-BC-PMMA-5.0 | ||||||
|
| SKU : ED-ADD-ON-8x-FC-PMMA-2.0 | ||||||
|
| SKU : ED-ADD-ON-8x-FC-PMMA-3.5 | ||||||
|
| SKU : ED-ADD-ON-8x-BC-PEEK-5.0 | ||||||
|
| SKU : ED-ADD-ON-8x-FC-PEEK-2.0 | ||||||
|
| SKU : ED-ADD-ON-8x-FC-PEEK-3.5 | ||||||
|
Technical Specifications
Precision engineering for accurate measurements
| Dimensions (W x D x H) | 120 x 60 x 25 mm |
|---|---|
| Material | Aluminum (base) + methacrylate (cover) |
| Compatibility | Thin-film electrodes 10 x 6 x 0.7 mm |
| Content | Platform + miniUSB box + IDC connector + cables (choose male or female plug) + Selected add-ons |
Resources & Downloads
Everything you need to get started
Multi8x All-in-One platform for thin-film electrodes
Customer Reviews
Related Product
Explore our precision instruments designed for electrochemical research and energy applications
Drop-cell Connector
- Dimensions (W x D x H): 40 x 30 x 25 mm
- Material: Aluminum (base) + methacrylate (cover)
- Compatibility: Thin-film electrodes 10 x 6 x 0.7 mm
- Content: Platform + cable (select male or female plug)
Multi-electrode Chip Platform
- Dimensions (W x D x H): 70 x 95 x 25 mm
- Material: Aluminum (base) + methacrylate (cover)
- Compatibility: Thin-film Multi-Electrodes SE-8x / SE-16x / IDE10-12x / IDE5-12x
- Content: Platform + 2x miniUSB boxes + 2x IDC connectors + cables (choose male or female banana ends)
External Electrode Platform (EEP)
- Dimensions (W x D x H): 70 x 65 x 35 mm
- Material: PLA
- Compatibility: AIO / AIO-SPE platform, Batch-cell add-ons, external electrodes (RE-Ag/AgCl, CE-Pt, CE-SS)
- Contents: EEP platform + 2 accessories for external electrodes
All-In-One SPE Plataform
- Dimensions (W x D x H): 60 x 40 x 15/30 mm
- Material: Aluminum (base) + methacrylate (cover)
- Compatibility: Standard SPE electrodes (27.5 x 10.1 mm)
All-In-One Platform
- Dimensions (W x D x H): 60 x 40 x 30 mm
- Material: Aluminum (base) + methacrylate (cover)
- Compatibility: Thin-film electrodes 10 x 6 x 0.7 mm
