Interdigitated Electrodes (IDE)
Thin-film Interdigitated Electrodes (IDE) are available in gold or platinum, with various widths and gaps. A standard SU8/PI resin protective layer is used to define the electrochemical cell, allowing for the use of very small sample volumes. IDEs are also available without this passivation layer upon request. Choose the option that best fits your experimental needs.
|
SKU : ED-IDE1-Pt |
||||||||||
|
Thin-film InterDigitated Platinum Electrode (IDE1-Pt – 10/10 µm).IDE1-Pt electrodes consist of 90 pairs of interdigitated platinum microelectrodes (10/10 µm, electrode width/gap). I These electrodes are suitable for applications in electrochemical impedance spectroscopy (EIS), scanning electron microscopy, and other electrochemical studies. Compatible with Drop, AIO, and Multi8x AIO cells. |
||||||||||
|
|
SKU : ED-IDE2-Pt |
||||||||||
|
Thin-film InterDigitated Platinum Electrode (IDE2-Pt – 10/5 µm).IDE2-Pt electrodes consist of 120 pairs of interdigitated platinum microelectrodes (10/5 µm, electrode width/gap). These electrodes are suitable for applications in electrochemical impedance spectroscopy (EIS), scanning electron microscopy, and other electrochemical studies. Compatible with Drop, AIO, and Multi8x AIO cells. |
||||||||||
|
|
SKU : ED-IDE3-Pt |
||||||||||
|

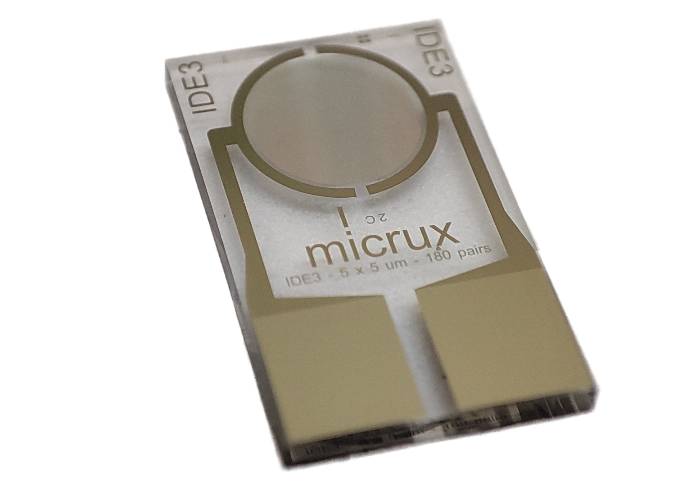

Thin-film InterDigitated Platinum Electrode (IDE3-Pt – 5/5 µm).IDE3-Pt electrodes consist of 180 pairs of interdigitated platinum microelectrodes (5/5 µm, electrode/gap). These electrodes are suitable for applications in electrochemical impedance spectroscopy (EIS), scanning electron microscopy, and other electrochemical studies. Compatible with Drop, AIO, and Multi8x AIO cells. |
||||||||||
|
|
SKU : ED-IDE1-Au |
||||||||||
|
Thin-film InterDigitated Gold Electrode (IDE1-Au – 10/10 µm).IDE1-Au electrodes consist of 90 pairs of interdigitated gold microelectrodes (10/10 µm, electrode width/gap). These electrodes are suitable for applications in electrochemical impedance spectroscopy (EIS), scanning electron microscopy, and other electrochemical studies. Compatible with Drop, AIO, and Multi8x AIO cells. |
||||||||||
|
|
SKU : ED-IDE2-Au |
||||||||||
|
Thin-film InterDigitated Gold Electrode (IDE2-Au – 10/5 µm).IDE2-Au electrodes consist of 120 pairs of interdigitated gold microelectrodes (10/5 µm, electrode width/gap). These electrodes are suitable for applications in electrochemical impedance spectroscopy (EIS), scanning electron microscopy, and other electrochemical studies. Compatible with Drop, AIO, and Multi8x AIO cells. |
||||||||||
|
Technical Specifications
Precision engineering for accurate measurements
| External dimensions | 10 x 6 x 0.7 mm |
|---|---|
| Substrate | Glass |
| Protective layer | SU8/PI resin or None |
| Electrochemical cell | 3.5 mm Ø |
| Sample volume | 2 – 10 µL |
| Electrode material | Gold or platinum |
Resources & Downloads
Everything you need to get started
Thin-film InterDigitated Electrodes
Customer Reviews
Related Product
Explore our precision instruments designed for electrochemical research and energy applications

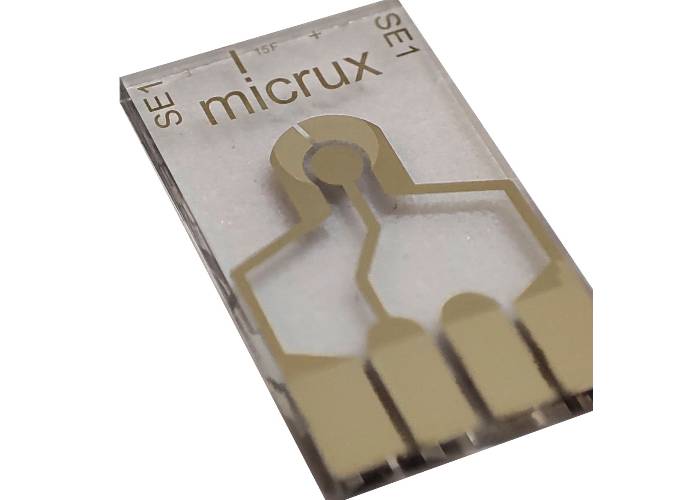

Single Electrodes (SE)
- External dimensions: 10 x 6 x 0.7 mm
- Substrate: Glass
- Protective layer: SU8/PI resin or None
- Electrochemical cell: 2 mm Ø
Microelectrode Array (MEA)
- External dimensions: 10 x 6 x 0.7 mm
- Substrate: Glass
- Protective layer: Microstructured SU8 resin
- Electrochemical cell: 2 mm Ø
Interdigitated Microelectrode Array (IDA)
- External dimensions: 10 x 6 x 0.7 mm
- Substrate: Glass
- Protective layer: SU8/PI resin or None
- Electrochemical cell: 2 mm Ø

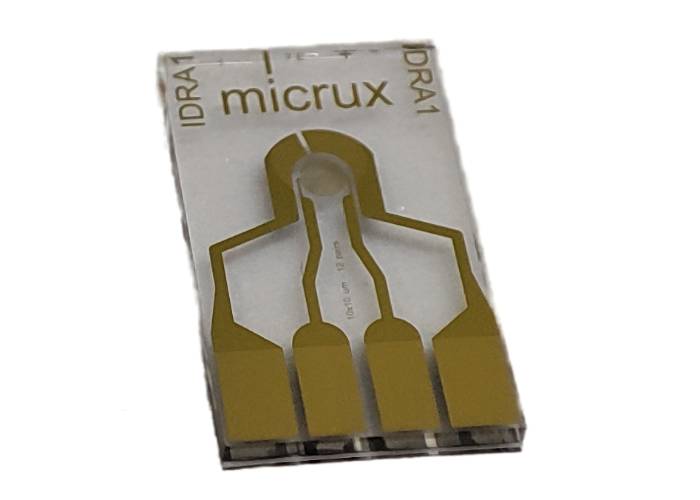

Interdigitated Ring Array (IDRA)
- External dimensions: 10 x 6 x 0.7 mm
- Substrate: Glass
- Protective layer: SU8/PI resin or None
- Electrochemical cell: 2 mm Ø
