Jacketed 5-Port Electrolytic Cell

Jacketed 5-Port Electrolytic Cell

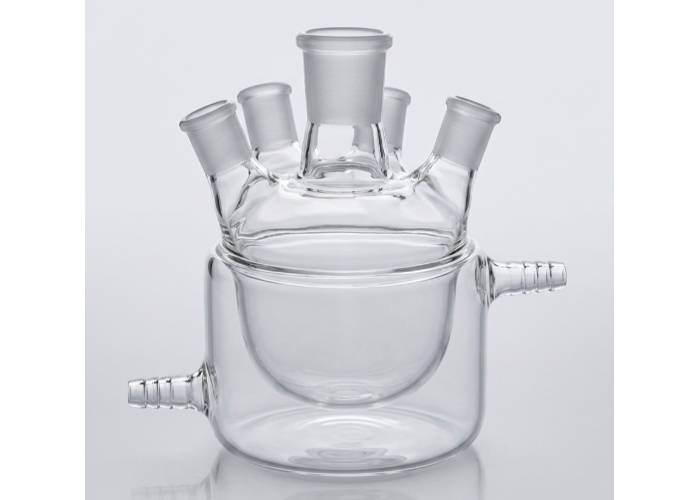

The Jacketed 5-Port Electrolytic Cell is a sophisticated, temperature-controlled reactor built for advanced electrochemical and electrolytic experiments under tightly regulated thermal and environmental conditions. Constructed with double-walled borosilicate glass, the outer jacket permits controlled circulation of coolant or heating fluid to maintain isothermal operation, while the inner reaction chamber remains fully sealed and isolated. The cell features five ports configured for working, counter, reference, gas inlet/outlet, and auxiliary electrode access. PTFE lids and O-ring seals ensure gas-tight integrity to prevent contamination or atmospheric interference.

This design suits demanding applications such as multi-electrode electrosynthesis, correlative gas evolution studies, temperature-dependent kinetics, and electrode degradation testing. With modular port options, customizable volumes, and robust chemical compatibility, the Jacketed 5-Port Cell offers researchers an adaptable and high-performance platform for complex electrochemical workflows.

For detailed specifications or custom dimensions, please contact us.
