Swagelok Three-Electrode Battery Test Cell

Overview

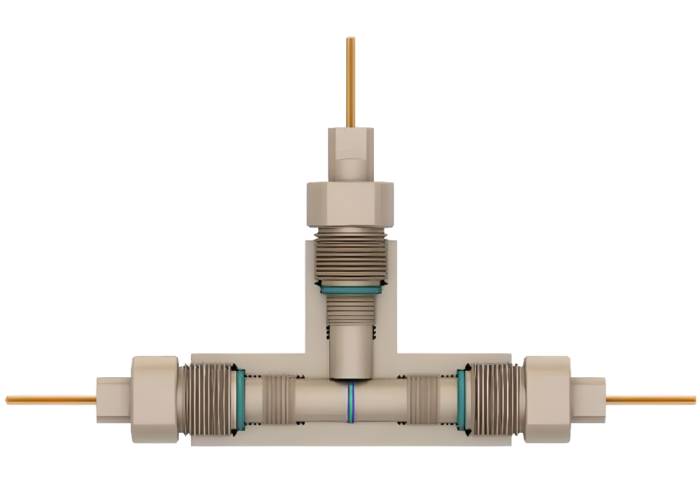

The Swagelok Three-Electrode Battery Test Cell is a compact, compression-sealed electrochemical cell designed to evaluate battery and electrode materials under controlled, laboratory-style conditions. A working and counter electrode are compressed in a Swagelok-type geometry, while a dedicated reference electrode port enables true three-electrode measurements (e.g., monitoring cathode potential independently from the full-cell voltage).

Principle of operation

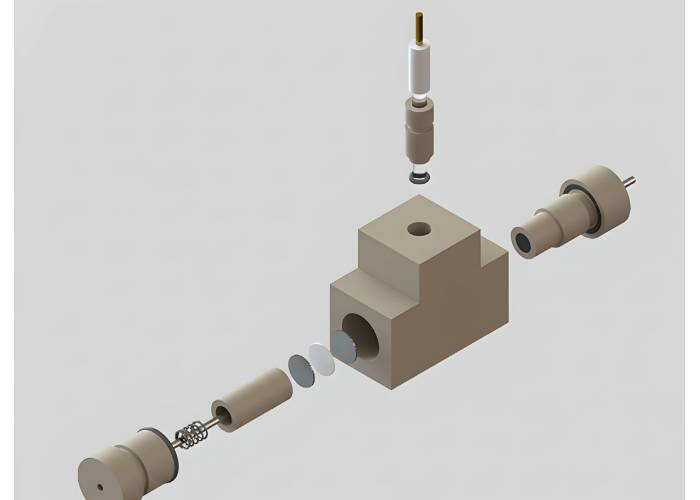

This Swagelok-style architecture compresses the electrode stack within a robust, leak-resistant body. By integrating a reference electrode, researchers can track individual electrode potentials during cycling, diagnose rate limitations, and identify degradation pathways that are otherwise masked in conventional full-cell voltage measurements. This approach is widely recognised as a powerful route to faster, more targeted battery materials development.

Key features and specifications

• Cell material: PEEK (chemically resistant, lightweight, and suitable for many battery electrolytes).
• Electrode core diameter: 6 mm.
• Inner diameter of cell: 10 mm.
• Maximum volume: < 1 mL for electrolyte-efficient testing.
• Reference electrode options (choose one):

                - Ag/AgCl
                - Non-aqueous Ag/Ag+
                - Stainless rod

• Adjustable anode–cathode spacing to minimise distance and tune interfacial conditions.



Electrode bundle options

Available configurations include the cell with two matching electrodes supplied as:

• Graphite electrodes
• Glassy carbon electrodes
• Stainless-steel electrodes
• Titanium electrodes

Compatibility and typical applications

This Swagelok-style three-electrode battery test cell is commonly used with potentiostats/galvanostats (including EIS-capable systems) and battery cyclers for:

• Electrode half-cell studies (kinetics, polarisation, impedance)
• Reference-controlled testing of battery materials and electrolytes
• Method development where small electrolyte volume and fast assembly are important

Why choose ScienceGears

ScienceGears supports researchers with high-quality battery test hardware, practical configuration guidance (including reference electrode selection), and seamless integration with leading electrochemical workstations and cyclers. If you are building a robust three-electrode workflow for publishable, electrode-resolved insights, this Swagelok cell is a compact, cost-effective starting point with strong experimental flexibility.
