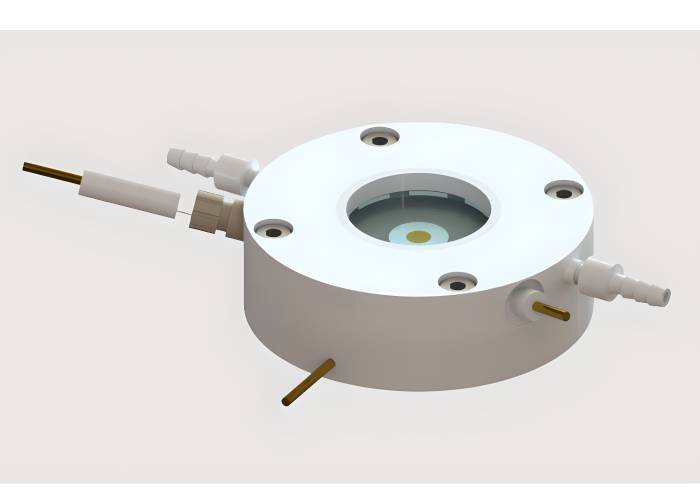

In-Situ Raman Spectroelectrochemical Cell – REC 01

In-Situ Raman Spectroelectrochemical Cell for Real-Time Interface Analysis

The In-Situ Raman Spectroelectrochemical Cell – REC 01 is designed for researchers who need to combine electrochemical control with Raman spectroscopy in a compact and practical experimental platform. It enables real-time observation of molecular and structural changes at or near the electrode surface while an electrochemical reaction is taking place, making it highly valuable for mechanistic studies in electrocatalysis, corrosion, energy storage and functional materials research.

Working Principle and Measurement Approach

REC 01 integrates a spectroscopic optical window with a three-electrode electrochemical configuration so that Raman measurements can be collected during polarisation, cycling or potential-step experiments. The quartz window allows Raman excitation and signal collection while the electrochemical cell maintains the required electrode arrangement for controlled measurements. This arrangement helps researchers correlate spectral changes with current, potential and reaction progress in the same experiment.

Configuration Options

REC 01 is available in two standard configuration options to suit different sample mounting requirements:

With pressing gland design
The standard cell kit includes a Pt wire counter electrode (CE), an Ag/AgCl reference electrode (RE) or other non-aqueous Ag/Ag+ reference electrode, and a glassy carbon working electrode (WE). In this configuration, the glassy carbon can also be used as a current collector to install carbon paper, nickel foam, or other sample materials.

Without pressing gland design
The standard cell kit includes a Pt wire counter electrode (CE), an Ag/AgCl reference electrode (RE) or other non-aqueous Ag/Ag+ reference electrode, and a glassy carbon working electrode or other customised working electrode option.

Key Features and Construction

• PTFE cell body for strong chemical resistance and laboratory durability
• Quartz optical window for Raman access and stable optical performance
• Compact external dimensions of approximately Ø70 × 22 mm
• Effective optical window of approximately Ø28–29 mm
• Quartz window thickness of 1 mm
• Built-in Pt wire counter electrode
• Ag/AgCl reference electrode option, with non-aqueous Ag/Ag+ reference options available
• Available with or without pressing gland design
• Glassy carbon working electrode supplied as standard
• In the pressing gland version, the glassy carbon can also function as a current collector for carbon paper, nickel foam, and related sample types
• Customised working electrode options available for specific experimental needs
• Adjustable working-surface-to-window spacing



Compatibility and Research Use

This in-situ Raman electrochemical cell is well suited for use with potentiostats, galvanostats and Raman spectrometers used in academic and industrial laboratories. It supports studies involving electrode materials, catalysts, coatings, carbon-based substrates and other electrochemically active surfaces where spectroscopic insight is required during operation.

Typical Applications

• Electrocatalysis and reaction mechanism studies
• Corrosion and surface film analysis
• Carbon paper and foam electrode investigations
• Energy storage and electrode material research
• Operando spectroscopy for electrochemical interfaces
